Components [06/2018 - 06/2021]

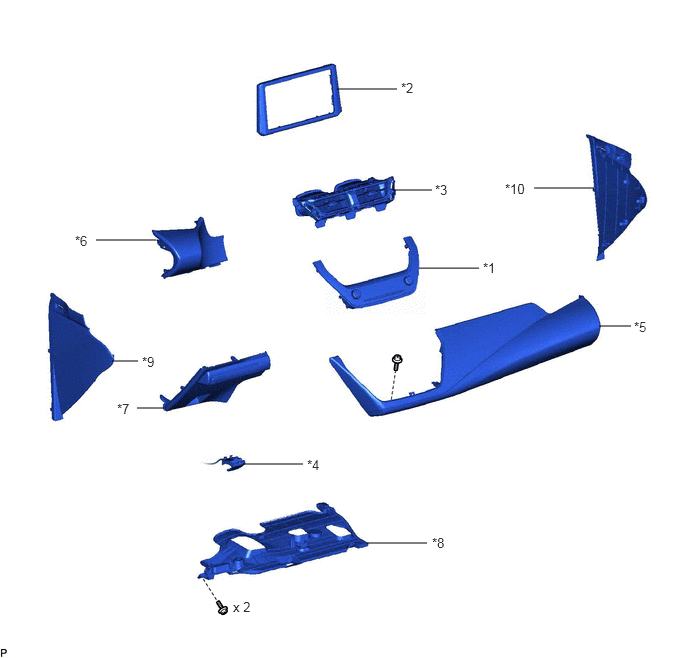

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR CONDITIONING CONTROL ASSEMBLY | *2 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
| *3 | CENTER INSTRUMENT PANEL REGISTER ASSEMBLY | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | *6 | INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
| *7 | LOWER INSTRUMENT PANEL FINISH PANEL | *8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *9 | NO. 1 INSTRUMENT SIDE PANEL | *10 | NO. 2 INSTRUMENT SIDE PANEL |

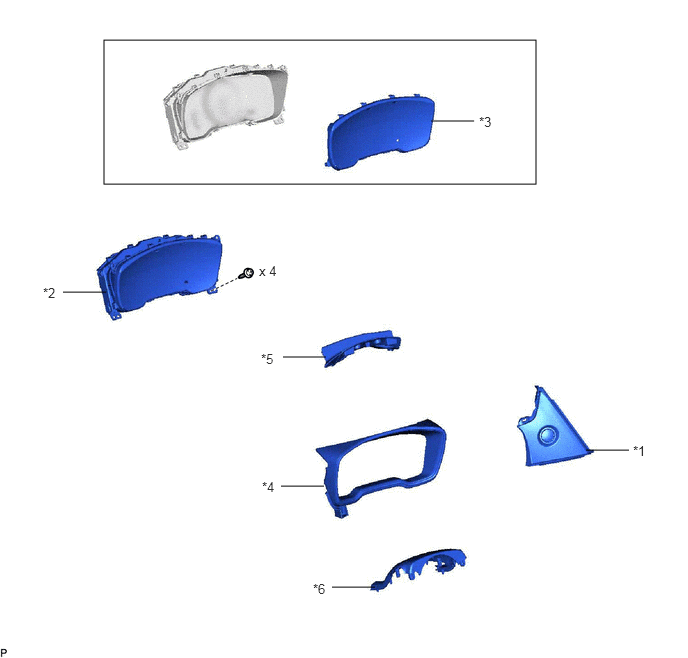

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL | *2 | COMBINATION METER ASSEMBLY |
| *3 | COMBINATION METER GLASS | *4 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
| *5 | INSTRUMENT CLUSTER FINISH PANEL RETAINER | *6 | UPPER STEERING COLUMN COVER |
