Installation [03/2017 - 06/2017]: Procedure

  1. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)
    1. Install the front seat belt anchor plate as shown in the illustration.

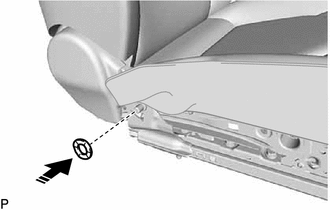

      GTY759320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front seat inner belt assembly LH with the nut.

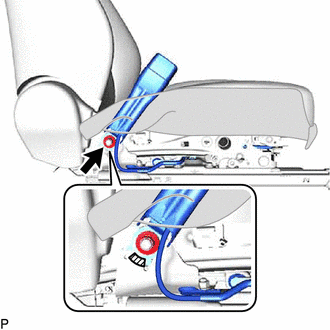

      GTY749802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the front seat inner belt assembly LH to overlap the protruding part of the separate type front seat cushion spring assembly.

    3. Engage each clamp.
    4. Connect each connector.
  2. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)
    1. Install the front seat belt anchor plate as shown in the illustration.

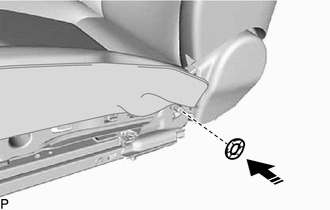

      GTY751334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the front seat inner belt assembly RH with the nut.

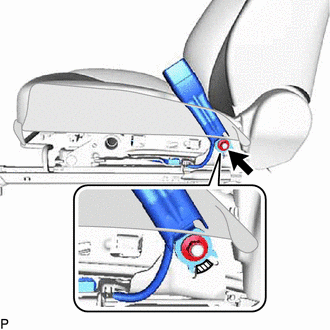

      GTY747820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part of the separate type front seat cushion spring assembly.

    3. Engage each clamp.
    4. Connect each connector.
  3. INSTALL FRONT SEAT ASSEMBLY LH (for Driver Side)

    Refer to INSTALLATION [03/2017 - 09/2019]

  4. INSTALL FRONT SEAT ASSEMBLY RH (for Front Passenger Side)

    Refer to INSTALLATION [03/2017 - 09/2019]
