Components [03/2017 - 09/2019]

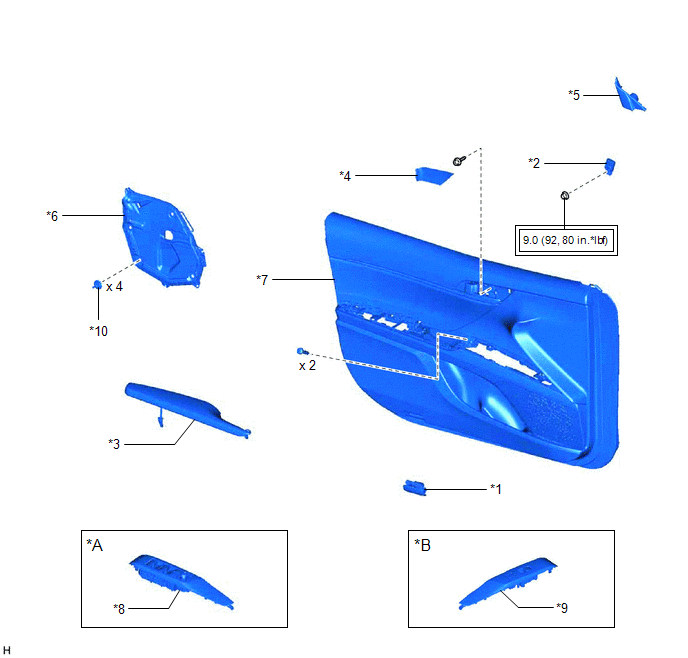

Fig 1: Side Airbag Sensor (For Front Door) Replacement Components With Torque Specifications [03/2017 - 09/2019]
| Callout | Description | Callout | Description |
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | DOOR SIDE AIRBAG SENSOR |
| *3 | FRONT ARMREST ASSEMBLY | *4 | FRONT DOOR ARMREST COVER SUB-ASSEMBLY |
| *5 | FRONT DOOR LOWER FRAME BRACKET GARNISH | *6 | FRONT DOOR SERVICE HOLE COVER |
| *7 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY | *8 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
| *9 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *10 | FRONT DOOR WEATHERSTRIP CLIP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
