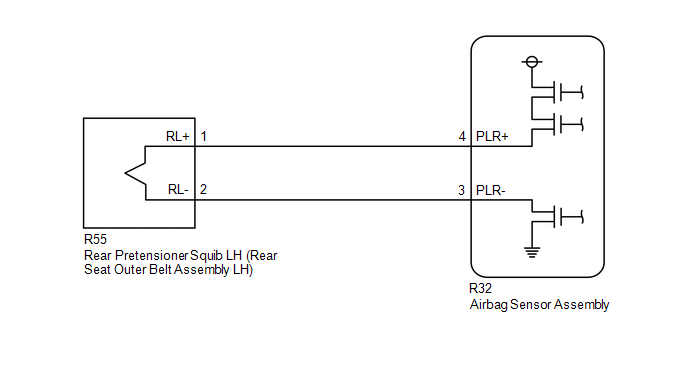

DTC B1925: Short in Rear P/T Squib (LH) Circuit; DTC B1926: Open in Rear P/T Squib (LH) Circuit; DTC B1927: Short in Rear P/T Squib (LH) Circuit (to Ground); DTC B1928: Short in Rear P/T Squib (LH) Circuit (to +B) [03/2017 - ]: Wiring Diagram

GTY759156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
