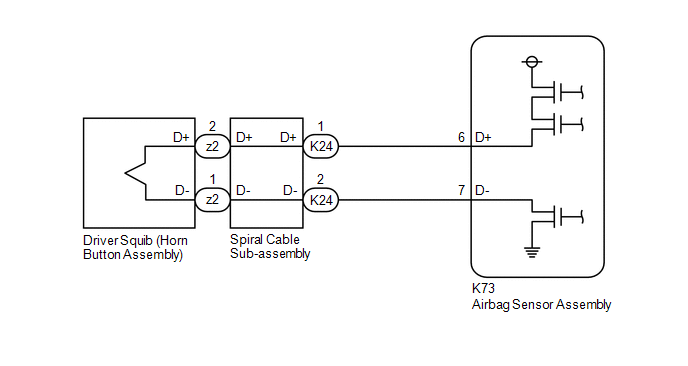

DTC B1800: Short in D Squib Circuit; DTC B1801: Open in D Squib Circuit; DTC B1802: Short in D Squib Circuit (to Ground); DTC B1803: Short in D Squib Circuit (to +B) [03/2017 - ]: Wiring Diagram

GTY757214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
