Installation [03/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)
    1. Install the flow shutting valve (No. 1 water by-pass hose) with the bolt.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

    2. Connect the flow shutting valve connector.
    3. Connect the flow shutting valve (No. 1 water by-pass hose) to the transmission oil cooler and slide the clip to secure it.
      GTY743472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b Paint Mark
      *c 45° (Tabs of Clip Installation Area) - -
      NOTE:
      • Make sure to slide the flow shutting valve (No. 1 water by-pass hose) until it contacts the hose stopper of the transmission oil cooler.
      • Make sure to align the paint mark of the flow shutting valve (No. 1 water by-pass hose) with the paint mark of the transmission oil cooler.
      • Make sure that the tabs of the clip are within the area shown in the illustration.
    4. Connect the flow shutting valve (No. 1 water by-pass hose) to the water outlet and slide the clip to secure it.

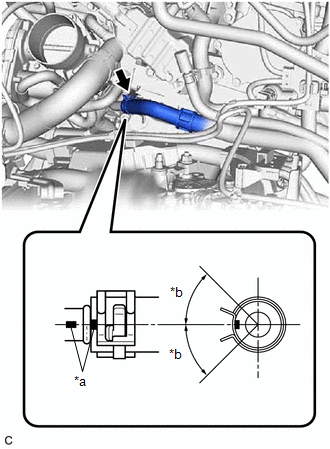

      GTY746350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark
      *b 45° (Tabs of Clip Installation Area)
      NOTE:
      • Make sure to slide the flow shutting valve (No. 1 water by-pass hose until it contacts the hose) stopper of the water outlet.
      • Make sure to align the paint mark of the flow shutting valve (No. 1 water by-pass hose) with the paint mark of the water outlet.
      • Make sure that the tabs of the clip are within the area shown in the illustration.
    5. Engage the 2 clamps to connect the flow shutting valve (No. 1 water by-pass hose) and transmission breather hose to the hose clamp.
    6. Engage the 3 clamps to install the hose clamp.
    7. Engage the 3 clamps to install the transmission breather clamp.
  2. INSTALL BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 41 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 41 [08/2018 - 03/2020] , or refer to PROCEDURE - Step 45 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 45 [10/2020 - ]

  3. INSTALL BATTERY

    Refer to INSTALLATION [03/2017 - 08/2018] , or refer to INSTALLATION [08/2018 - ]

  4. INSTALL ECM

    Refer to INSTALLATION [03/2017 - ]

  5. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 2 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 2 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 2 [08/2018 - ]

  6. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 1 [08/2018 - ]

  7. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 65 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 65 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 65 [08/2018 - 03/2020] , or refer to PROCEDURE - Step 70 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 70 [10/2020 - ]

  8. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 67 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 67 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 67 [08/2018 - 03/2020] , or refer to PROCEDURE - Step 72 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 72 [10/2020 - ]

  9. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 68 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 68 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 68 [08/2018 - 03/2020] , or refer to PROCEDURE - Step 73 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 73 [10/2020 - ]

  10. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 69 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 69 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 69 [08/2018 - 03/2020] , or refer to PROCEDURE - Step 74 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 74 [10/2020 - ]

  11. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 70 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 70 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 70 [08/2018 - 03/2020] , or refer to PROCEDURE - Step 75 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 75 [10/2020 - ]

  12. INSTALL FRONT WHEEL LH

    Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - ]
