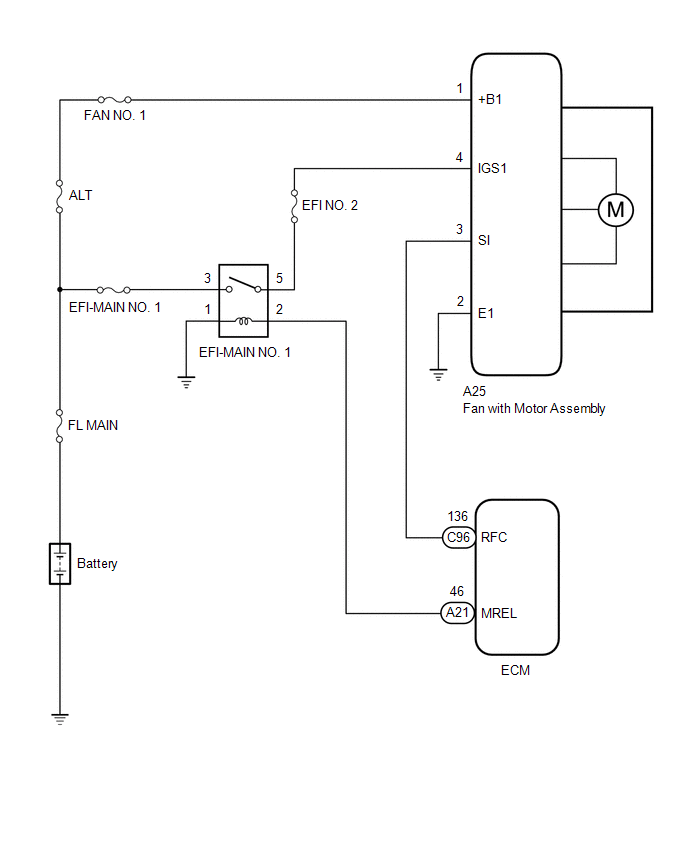

Cooling Fan Circuit [06/2017 - ]: Wiring Diagram

GTY744815

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
