Components [03/2017 - ]

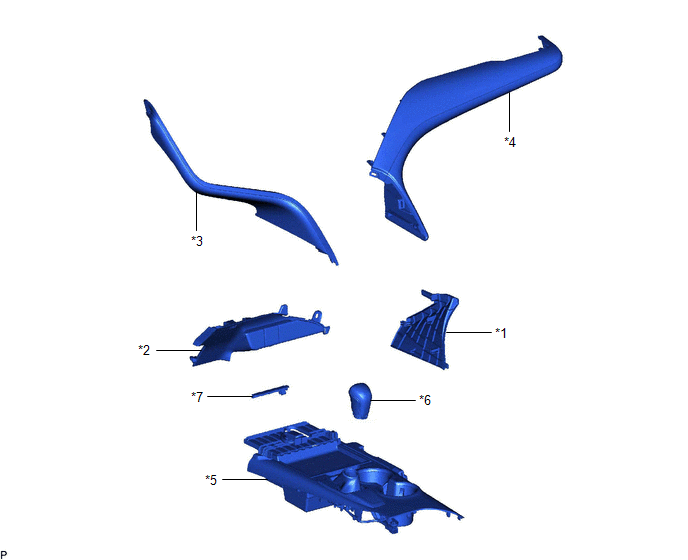

Fig 1: Wireless Charger Assembly Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INSTRUMENT PANEL FINISH PLATE GARNISH	*2	LOWER CENTER INSTRUMENT PANEL FINISH PANEL
*3	NO. 1 METER HOOD CLUSTER	*4	NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
*5	REAR UPPER CONSOLE PANEL SUB-ASSEMBLY	*6	SHIFT LEVER KNOB SUB-ASSEMBLY
*7	SHIFT LOCK RELEASE BUTTON COVER	-	-

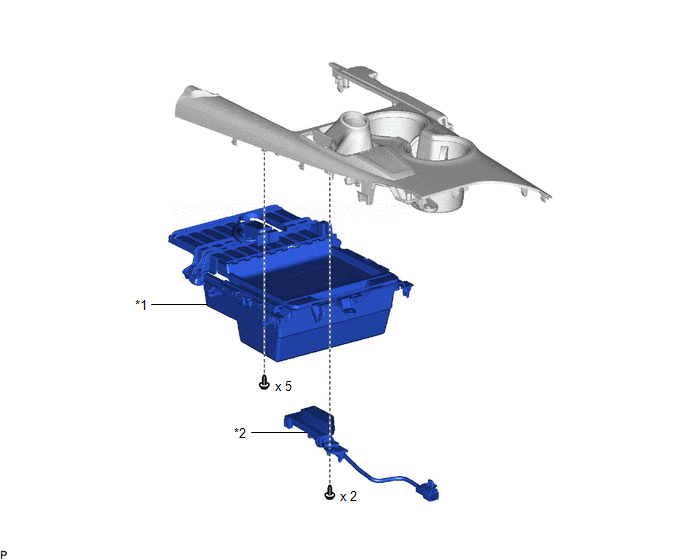

Fig 2: Wireless Charger Assembly Replacement Components (2 Of 2)

MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (FRONT CONSOLE BOX INSERT SUB-ASSEMBLY)

SHIFT POSITION INDICATOR
