Parts Location [06/2017 - 03/2020]: Illustration

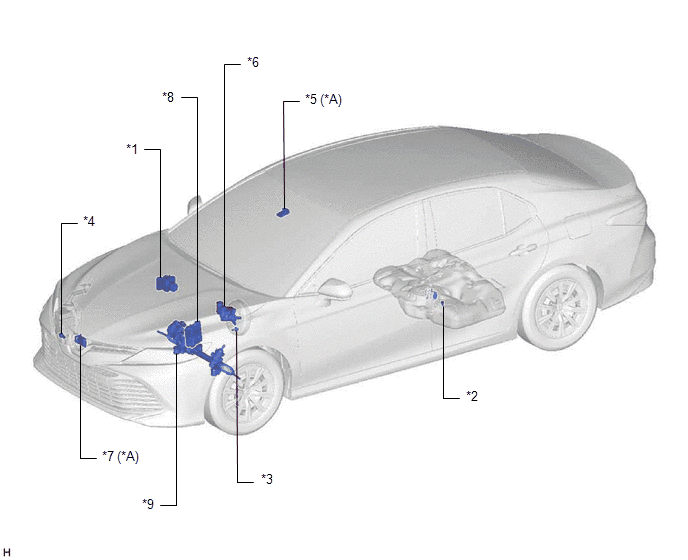

| *A | w/ Forward Recognition Camera | - | - |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | VACUUM WARNING SWITCH ASSEMBLY | *4 | LEVEL WARNING SWITCH ASSEMBLY |
| *5 | FORWARD RECOGNITION CAMERA | *6 | BRAKE FLUID LEVEL WARNING SWITCH (BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY) |
| *7 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *8 | ECM |
| *9 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) | - | - |

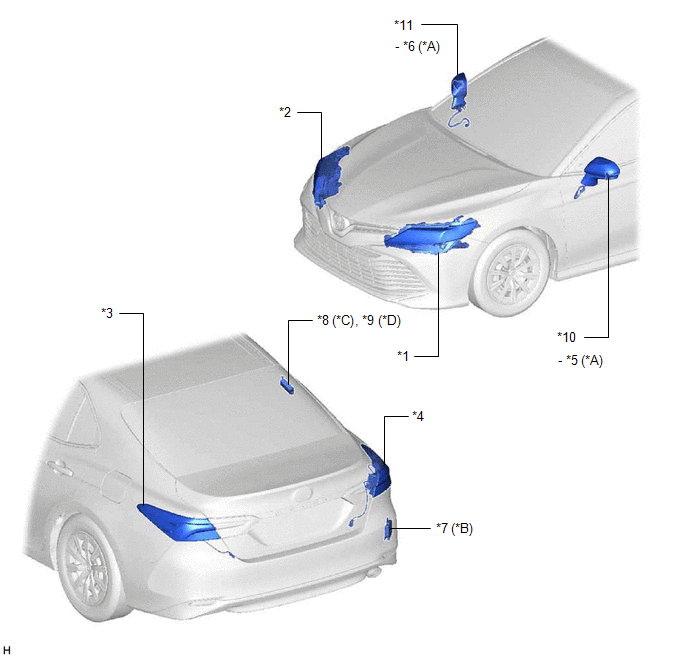

| *A | w/ Side Turn Signal Light | *B | w/ Blind Spot Monitor System |
| *C | w/o Smart Key System | *D | w/ Smart Key System |
| *1 | HEADLIGHT ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH | *4 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *7 | BLIND SPOT MONITOR SENSOR RH (B) | *8 | DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY |
| *9 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | *10 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *11 | OUTER REAR VIEW MIRROR ASSEMBLY RH | - | - |

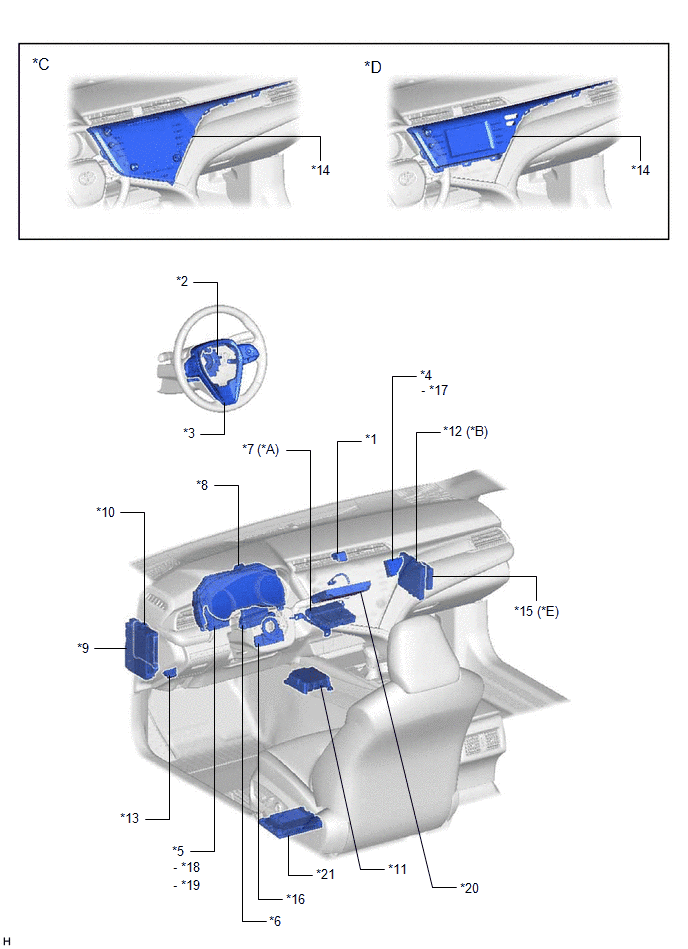

| *A | w/ Manual (SOS) Switch | *B | w/ Smart Key System |
| *C | for 8 Inch Display Type | *D | for 7 Inch Display Type |
| *E | w/ Intelligent Clearance Sonar System | - | - |
| *1 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | TELLTALE LIGHT ASSEMBLY |
| *5 | TRIP SWITCH | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | DCM (TELEMATICS TRANSCEIVER) | *8 | COMBINATION METER ASSEMBLY |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE - HAZ FUSE |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | AIRBAG SENSOR ASSEMBLY | *12 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *13 | DLC3 | *14 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *15 | CLEARANCE WARNING ECU ASSEMBLY | *16 | STEERING SENSOR |
| *17 | REAR SEAT BELT WARNING LIGHT | *18 | ODO/TRIP SWITCH |
| *19 | LIGHT CONTROL RHEOSTAT SWITCH | *20 | NAVIGATION ECU (w/ Navigation System) |
| *21 | STEREO COMPONENT AMPLIFIER ASSEMBLY (for 9 Speakers) | - | - |
