Electric Parking Brake System - Diagnostic Codes & Symptom Tests (Except Hybrid)
>>
Electric Parking Brake System
>>
DTC C0610-00: Right Electric Parking Brake Actuator Control; DTC C0610-11: Right Electric Parking Brake Actuator Control Circuit Short to Ground [10/2020 - ]
>>

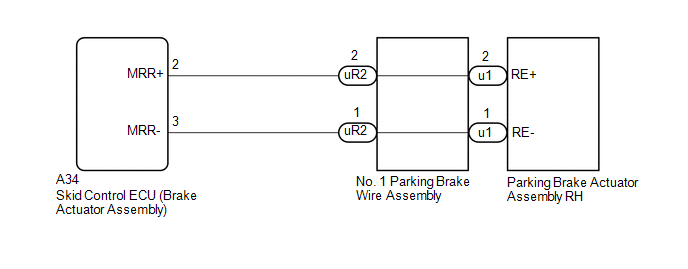

Wiring Diagram
DTC C0610-00: Right Electric Parking Brake Actuator Control; DTC C0610-11: Right Electric Parking Brake Actuator Control Circuit Short to Ground [10/2020 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
