Components [03/2017 - ]

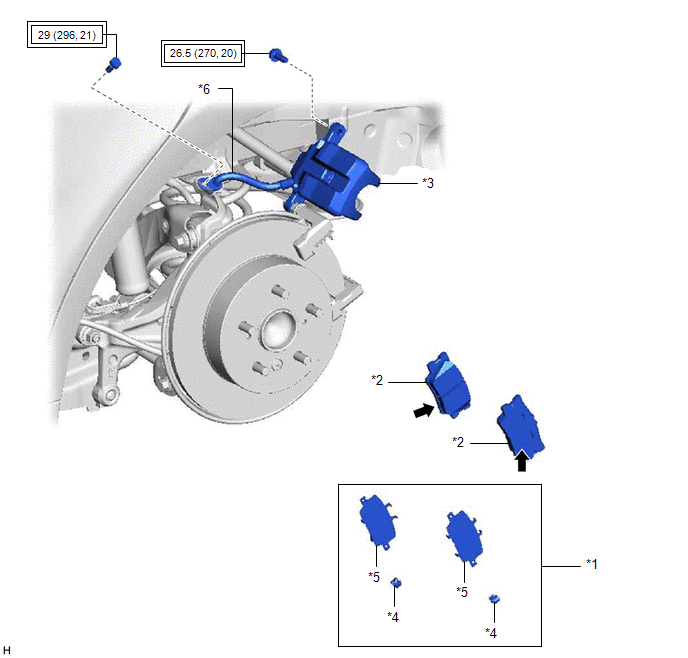

Fig 1: Rear Disc Brake Pad (W/O Electric Parking Brake System) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
| *1 | REAR DISC BRAKE ANTI-SQUEAL SHIM KIT | *2 | REAR DISC BRAKE PAD |
| *3 | REAR DISC BRAKE CYLINDER ASSEMBLY | *4 | REAR DISC BRAKE PAD WEAR INDICATOR PLATE |
| *5 | REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM | *6 | REAR FLEXIBLE HOSE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | Brake shim grease (Part No. 08887-80409) |
