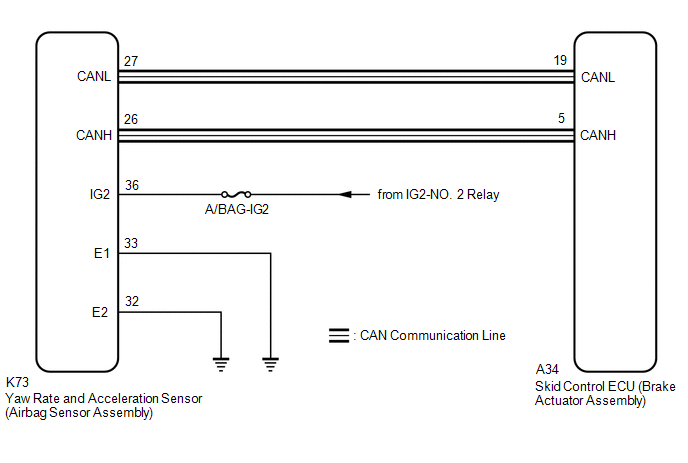

DTC C1234: Yaw Rate Sensor; DTC C1472: Acceleration Sensor; DTC C1474: Forward and Rearward G Sensor [06/2017 - 10/2020]: Wiring Diagram

GTY759472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
