Rear Door Window Frame Moulding
>>
Components [03/2017 - ]
Components [03/2017 - ]

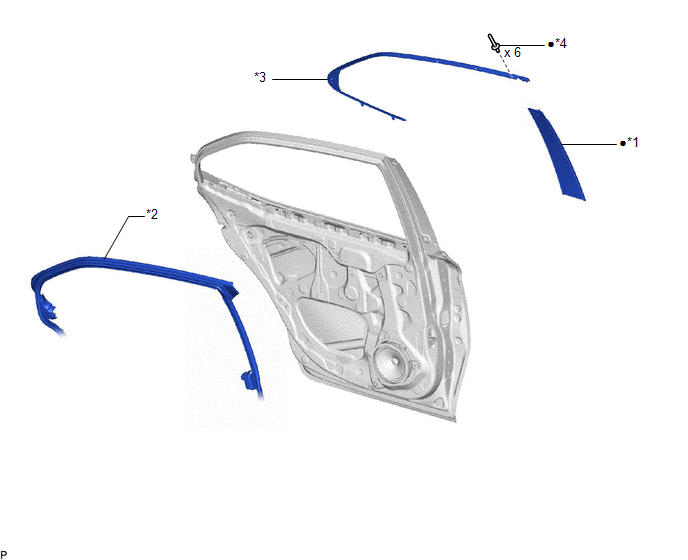

Fig 1: Rear Door Window Frame Moulding Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
REAR DOOR FRONT WINDOW FRAME MOULDING
*2
REAR DOOR WEATHERSTRIP
*3
REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY
*4
RIVET
•
Non-reusable part
-
-
