Removal [03/2017 - ]: Procedure

REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY

NOTE:

Removing the lower steering column cover sub-assembly in the incorrect order will cause the parts to break.

Release the tilt and telescopic lever and fully extend and lower the steering column assembly.
Lock the tilt and telescopic lever.

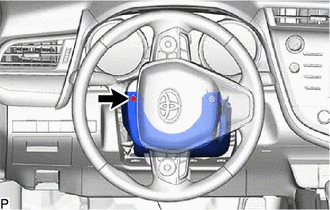

Turn the steering wheel assembly to the left and remove the screw.

GTY761135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

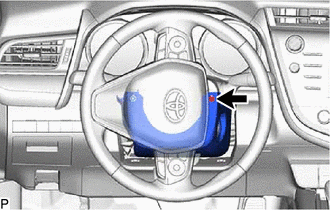

Turn the steering wheel assembly to the right and remove the screw.

GTY761136

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

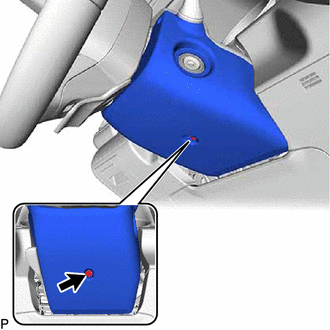

Remove the screw.

GTY761133

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

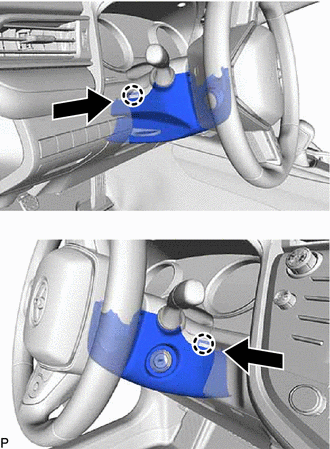

Push the lower steering column cover sub-assembly and disengage the 2 claws as shown in the illustration.

GTY763386

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push

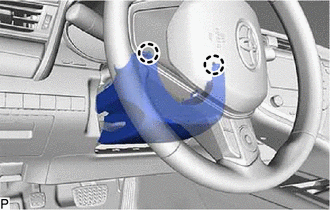

Disengage the 2 claws to remove the lower steering column cover sub-assembly.

GTY773065

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE UPPER STEERING COLUMN COVER

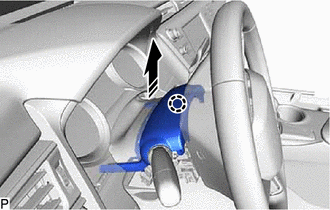

Disengage the claw to separate the upper steering column cover as shown in the illustration.

GTY745645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Separate in this Direction

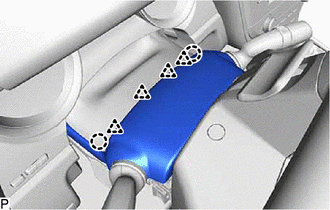

Disengage the 2 claws and 4 clips to remove the upper steering column cover from the instrument cluster finish panel assembly.

GTY773069

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

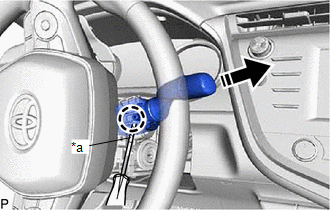

Using a screwdriver, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

GTY750818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Remove in this Direction

NOTE:

If the claw is pulled with excessive force, it may break.

HINT:

Tape the screwdriver tip before use.
