Components [03/2017 - ]

Fig 1: Rear Seat Reclining Control Cable Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SPARE WHEEL COVER ASSEMBLY

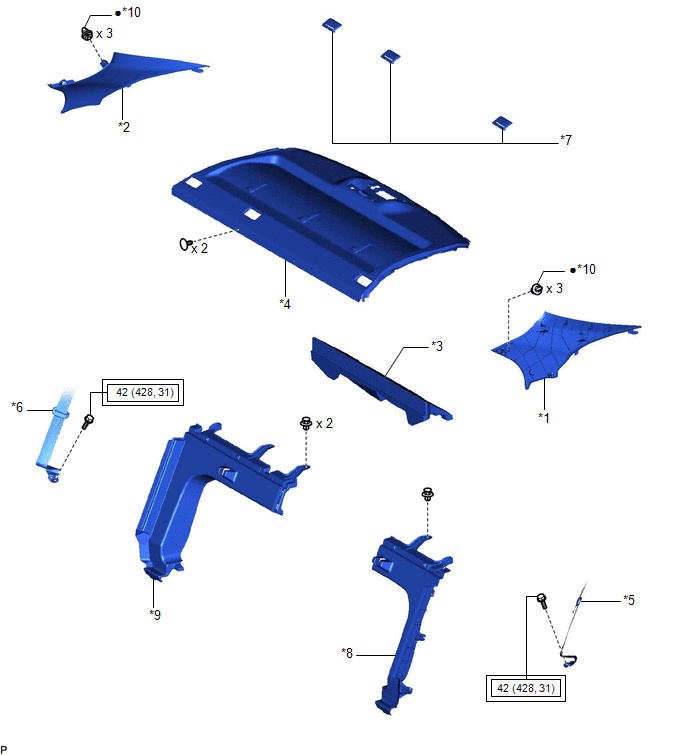

Fig 2: Rear Seat Reclining Control Cable Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INNER ROOF SIDE GARNISH LH	*2	INNER ROOF SIDE GARNISH RH
*3	LUGGAGE COMPARTMENT TRIM INNER PAD	*4	PACKAGE TRAY TRIM PANEL ASSEMBLY
*5	REAR SEAT OUTER BELT ASSEMBLY LH	*6	REAR SEAT OUTER BELT ASSEMBLY RH
*7	REAR SEAT SHOULDER BELT HOLE COVER	*8	ROOM PARTITION BOARD LH
*9	ROOM PARTITION BOARD RH	*10	CLIP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

Fig 3: Rear Seat Reclining Control Cable Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	REAR SEATBACK LOCK ASSEMBLY LH	*2	REAR SEATBACK LOCK ASSEMBLY RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
