Components [03/2017 - 09/2019]

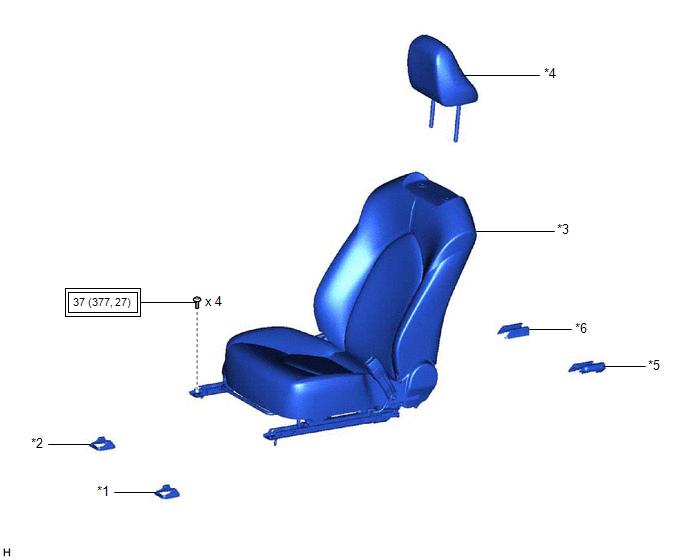

Fig 1: Front Seat Assembly (For TMC Made Manual Seat) Replacement Components With Torque Specifications (1 Of 14)
| Callout | Description | Callout | Description |
| *1 | FRONT INNER SEAT TRACK BRACKET COVER RH | *2 | FRONT OUTER SEAT TRACK BRACKET COVER RH |
| *3 | FRONT SEAT ASSEMBLY RH | *4 | FRONT SEAT HEADREST ASSEMBLY |
| *5 | REAR INNER SEAT TRACK BRACKET COVER RH | *6 | REAR OUTER SEAT TRACK BRACKET COVER RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

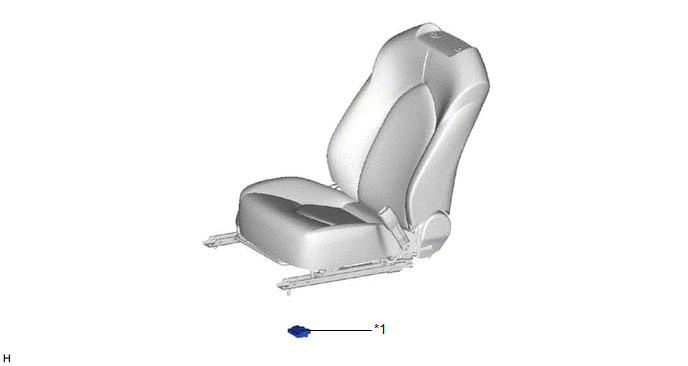

| *1 | OCCUPANT DETECTION ECU | - | - |
Fig 3: Front Seat Assembly (For TMC Made Manual Seat) Replacement Components With Torque Specifications (3 Of 14)
| Callout | Description | Callout | Description |

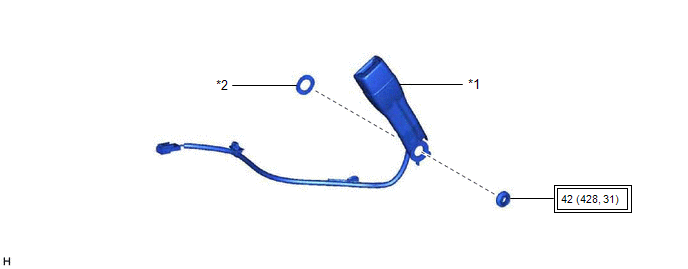

| *1 | FRONT SEAT INNER BELT ASSEMBLY RH | *2 | FRONT SEAT BELT ANCHOR PLATE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
| *1 | FRONT SEAT CUSHION SHIELD RH | *2 | FRONT SEAT INNER CUSHION SHIELD RH |

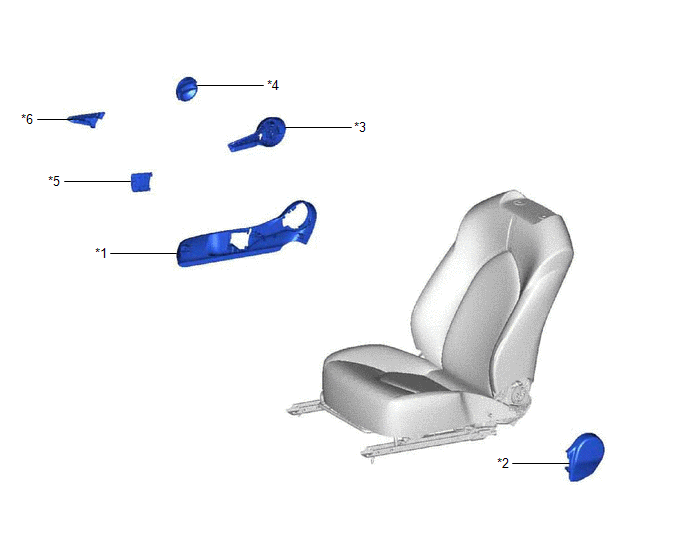

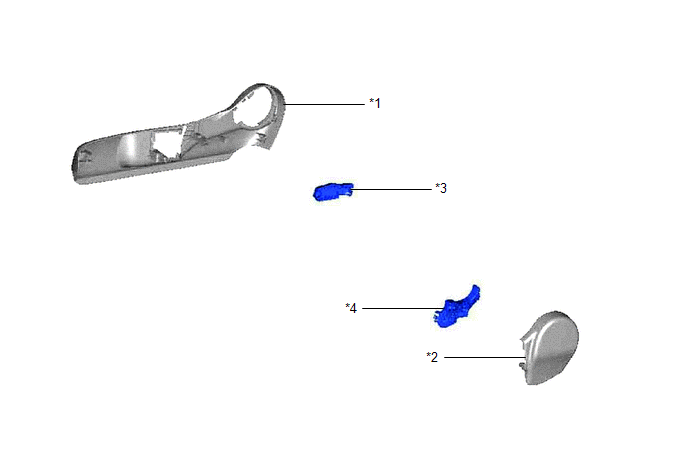

| *3 | RECLINING ADJUSTER RELEASE HANDLE RH | *4 | RECLINING HINGE COVER RH |
| *5 | SEAT ADJUSTER COVER CAP RH | *6 | VERTICAL ADJUSTING HANDLE RH |
| *1 | FRONT SEAT CUSHION SHIELD RH | *2 | FRONT SEAT INNER CUSHION SHIELD RH |
| *3 | LOWER NO. 1 SEAT TRACK SPACER | *4 | LOWER NO. 2 SEAT TRACK SPACER |
Fig 6: Front Seat Assembly (For TMC Made Manual Seat) Replacement Components With Torque Specifications (6 Of 14)
| Callout | Description | Callout | Description |

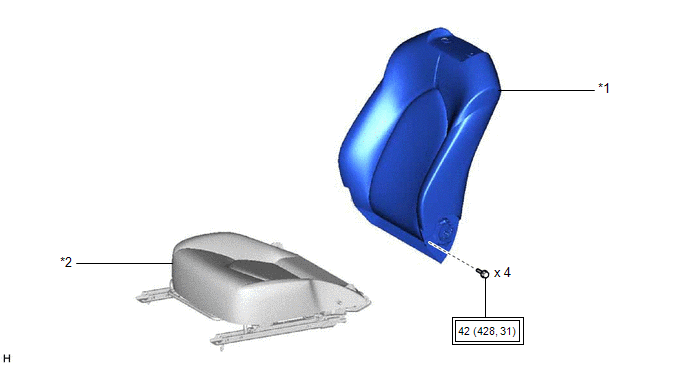

| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

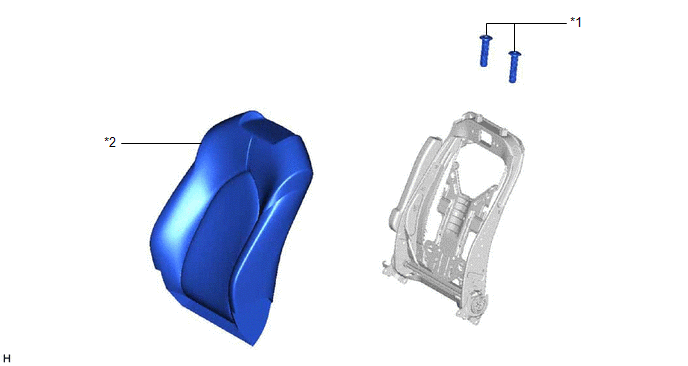

| *1 | FRONT SEAT HEADREST SUPPORT | *2 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD |

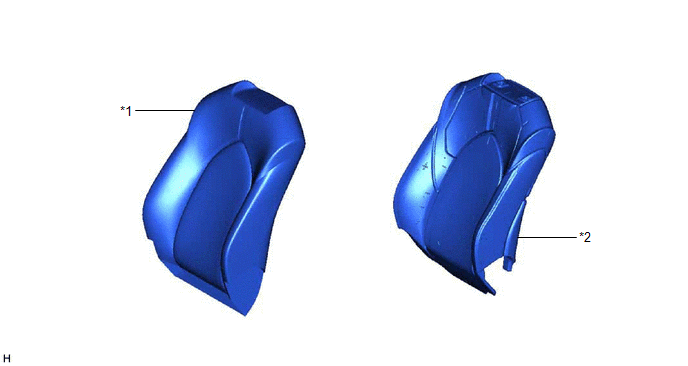

| *1 | SEPARATE TYPE FRONT SEATBACK COVER | *2 | SEPARATE TYPE FRONT SEATBACK PAD |
Fig 9: Front Seat Assembly (For TMC Made Manual Seat) Replacement Components With Torque Specifications (9 Of 14)
| Callout | Description | Callout | Description |

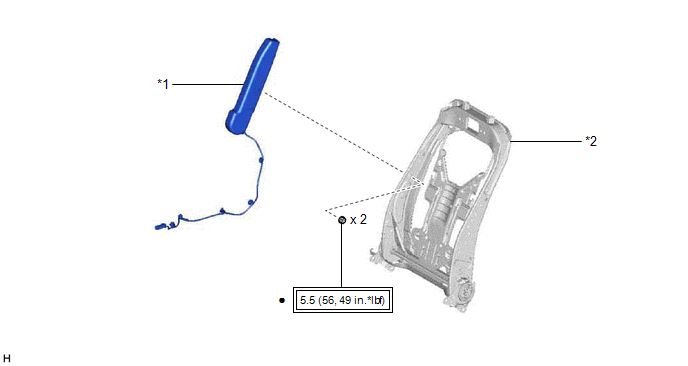

| *1 | FRONT SEAT AIRBAG ASSEMBLY RH | *2 | SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

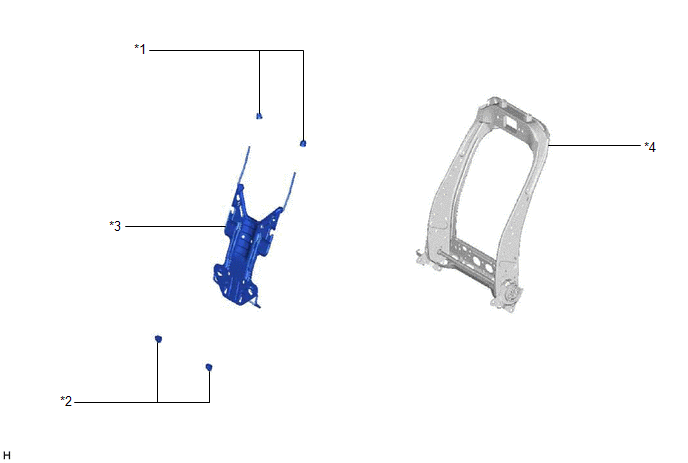

| *1 | FRONT NO. 1 SEATBACK HOOK | *2 | FRONT SEATBACK EDGE PROTECTOR |
| *3 | FRONT SEATBACK SPRING SUB-ASSEMBLY RH | *4 | FRONT SEATBACK FRAME SUB-ASSEMBLY RH |

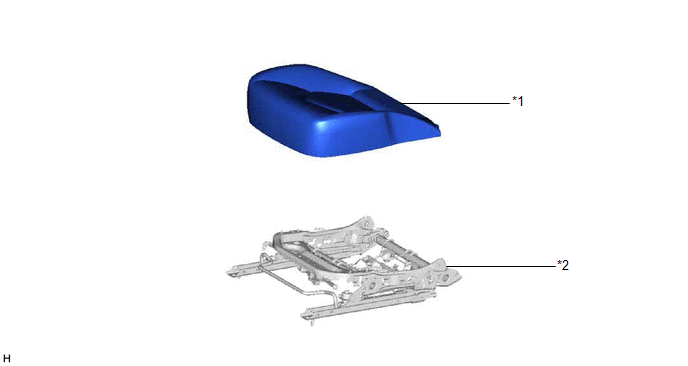

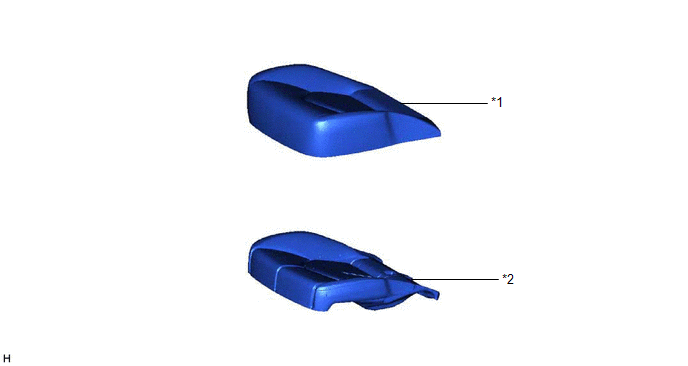

| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD | *2 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY |
| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER | *2 | SEPARATE TYPE FRONT SEAT CUSHION PAD |

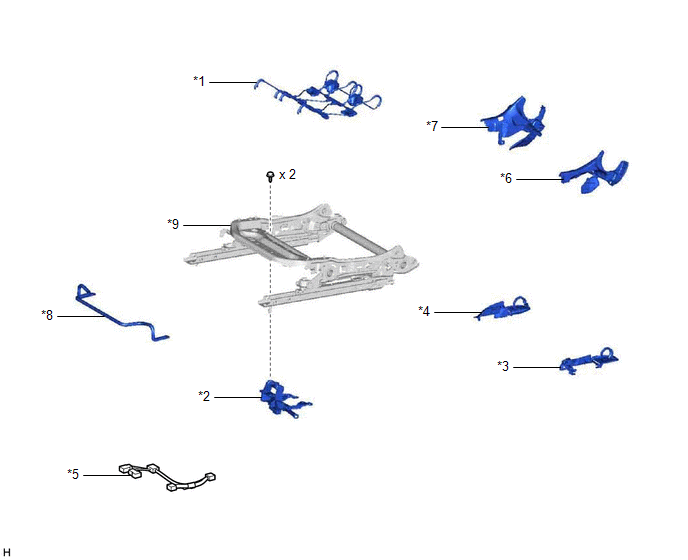

| *1 | FRONT SEAT CUSHION SPRING SUB-ASSEMBLY RH | *2 | FRONT SEAT CUSHION WIRE HARNESS HOLDER RH |
| *3 | FRONT SEAT LOWER CUSHION SHIELD LH | *4 | FRONT SEAT LOWER CUSHION SHIELD RH |
| *5 | FRONT SEAT WIRE RH | *6 | RH SEAT RECLINING ADJUSTER INSIDE COVER LH |
| *7 | RH SEAT RECLINING ADJUSTER INSIDE COVER RH | *8 | SEAT TRACK ADJUSTING HANDLE |
| *9 | FRONT SEAT ADJUSTER ASSEMBLY RH | - | - |
Fig 14: Front Seat Assembly (For TMC Made Manual Seat) Replacement Components With Torque Specifications (14 Of 14)
| Callout | Description | Callout | Description |

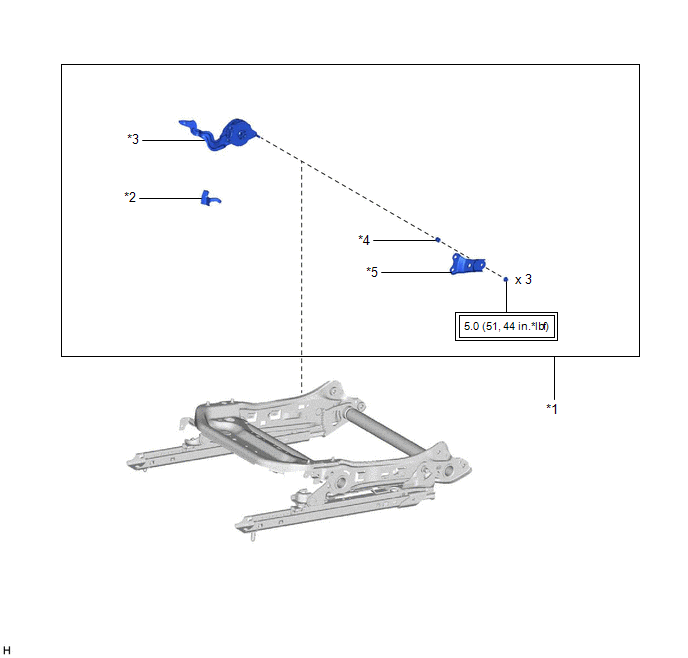

| *1 | FRONT SEAT VERTICAL ADJUSTER ASSEMBLY | *2 | VERTICAL ADJUSTER BRACKET COVER RH |
| *3 | FRONT VERTICAL ADJUSTER BRAKE SUB-ASSEMBLY RH | *4 | VERTICAL ADJUSTER SPACER |
| *5 | VERTICAL ADJUSTER PLATE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
