DTC B1537-11: Telephone Sub Antenna Circuit Short to Ground; DTC B1537-13: Telephone Sub Antenna Circuit Open [10/2020 - ]: Procedure
- CHECK DTC
- Turn the engine switch off.
- Connect the Techstream to the DLC3.
- Turn the engine switch is on (IG) and wait for 10 seconds or more.
- Turn the Techstream on.
- Clear the DTCs.
Body Electrical > Telematics > Clear DTCs
- Check for DTCs and check that no DTCs are output.
Body Electrical > Telematics > Trouble Codes
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
OK
CHECK FOR INTERMITTENT PROBLEMS. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2020 - 08/2021] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2021 - ]
Result:
NG
See step 2
- INSPECT TELEPHONE AND GPS ANTENNA ASSEMBLY (for Front Side)
- Remove the navigation antenna assembly.
Refer to REMOVAL [10/2020 - ]
- Inspect the navigation antenna assembly.
Refer to INSPECTION [09/2019 - ]
Result
Proceed to OK NG
Result:
NG
REPLACE TELEPHONE AND GPS ANTENNA ASSEMBLY (for Front Side). Refer to REMOVAL [10/2020 - ]
Result:
OK
See step 3
- Remove the navigation antenna assembly.
- INSPECT TELEPHONE AND GPS ANTENNA CORD (for Type A)
- Disconnect the F telephone and GPS antenna cord (for Type A) connector.

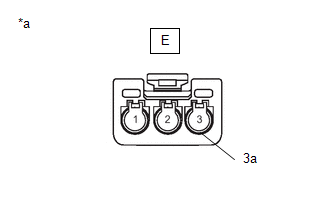

*a Component without harness connected (Telephone and GPS Antenna Cord (for Type A)) - Disconnect the E telephone and GPS antenna cord (for Type A) connector.
*a Component without harness connected (Telephone and GPS Antenna Cord (for Type A)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition F-4 - E-3 Always Below 1 Ω F-4 or E-3 - Body ground Always 10 kΩ or higher F-4a - E-3a Always Below 1 Ω F-4a or E-3a - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE TELEPHONE AND GPS ANTENNA CORD (for Type A). Refer to REMOVAL [10/2020 - ]
Result:
OK
See step 4
- Disconnect the F telephone and GPS antenna cord (for Type A) connector.
- INSPECT TELEPHONE AND GPS ANTENNA CORD (for Type B)
- Disconnect the D telephone and GPS antenna cord (for Type B) connector.

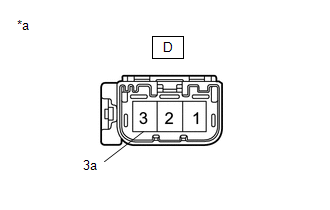

*a Component without harness connected (Telephone and GPS Antenna Cord (for Type B)) - Disconnect the A telephone and GPS antenna cord (for Type B) connector.
*a Component without harness connected (Telephone and GPS Antenna Cord (for Type B)) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition D-3 - A-1 Always Below 1 Ω D-3 or A-1 - Body ground Always 10 kΩ or higher D-3a - A-1a Always Below 1 Ω D-3a or A-1a - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE TELEPHONE AND GPS ANTENNA CORD (for Type B). Refer to REMOVAL [10/2020 - ]
Result:
OK
See step 5
- Disconnect the D telephone and GPS antenna cord (for Type B) connector.
- REPLACE DCM (TELEMATICS TRANSCEIVER)
- Replace the DCM (telematics transceiver) with a new one.
Refer to REMOVAL [10/2020 - ]
NOTE:- The engine switch must be off.
- Do not exchange the DCM (telematics transceiver) with one from another vehicle.
Result
Proceed to NEXT
Result:
NEXT
PERFORM DCM ACTIVATION. Refer to DCM ACTIVATION [09/2019 - ]
- Replace the DCM (telematics transceiver) with a new one.
