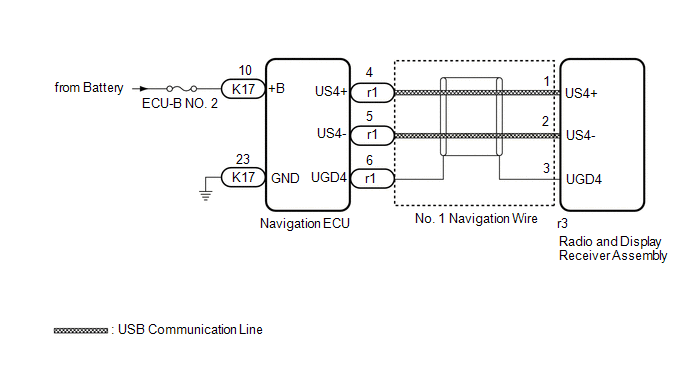

DTC B1543: Extension Module Disconnected 2 [06/2017 - ]: Wiring Diagram

GTY769649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
