System Diagram [03/2020 - 10/2020]

HINT:

Refer to System Diagram of CAN Communication System.

Refer to SYSTEM DIAGRAM [03/2020 - 10/2020]

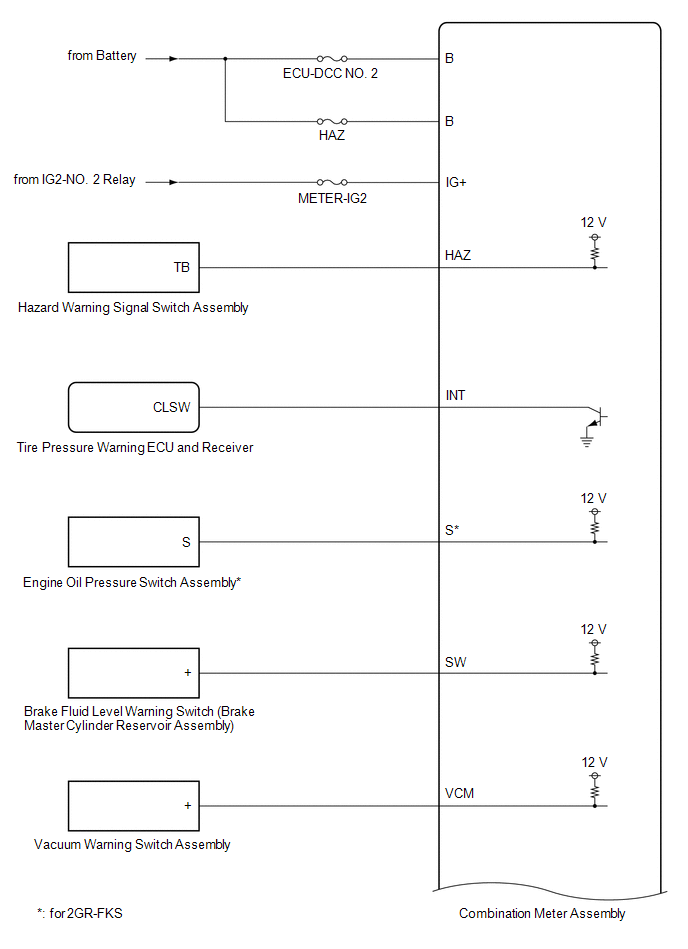

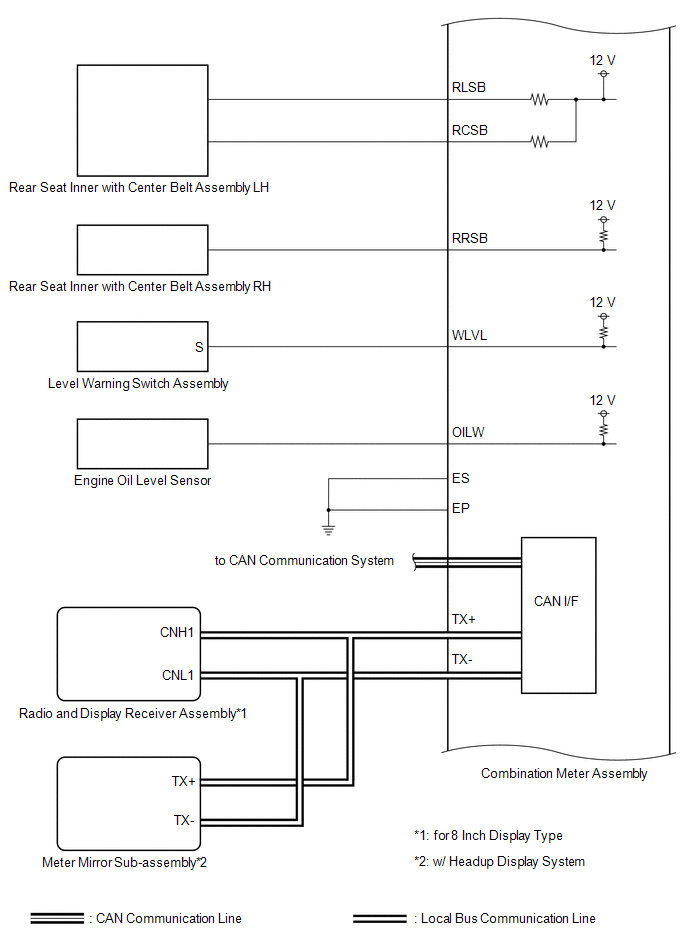

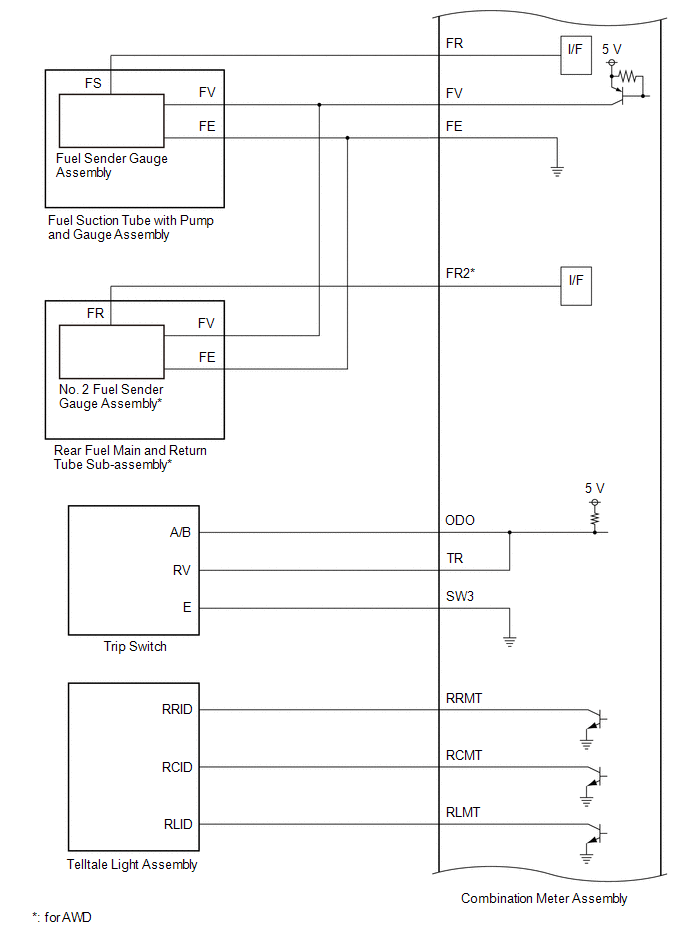

1. COMBINATION METER ASSEMBLY DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

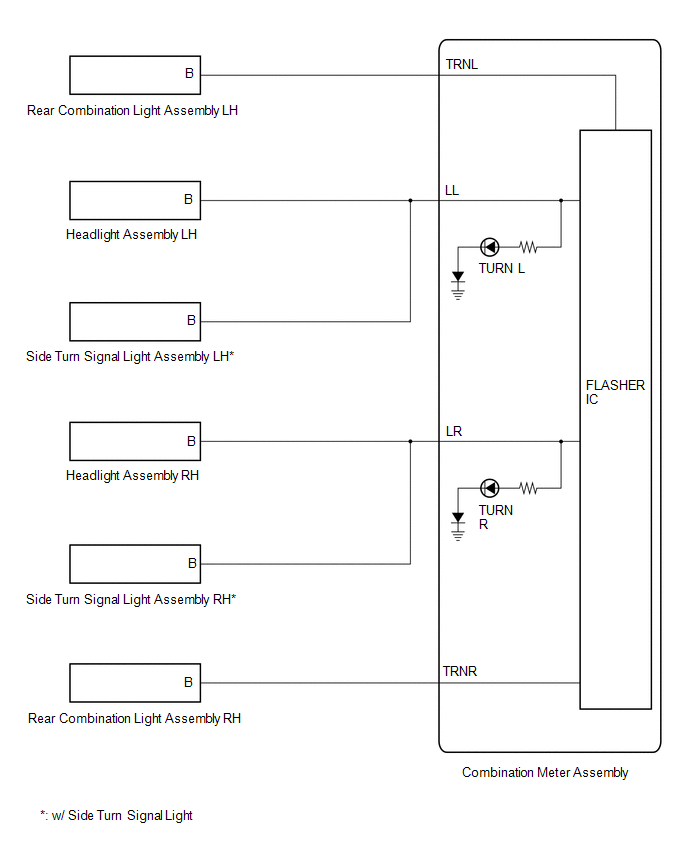

2. TURN SIGNAL LIGHT DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

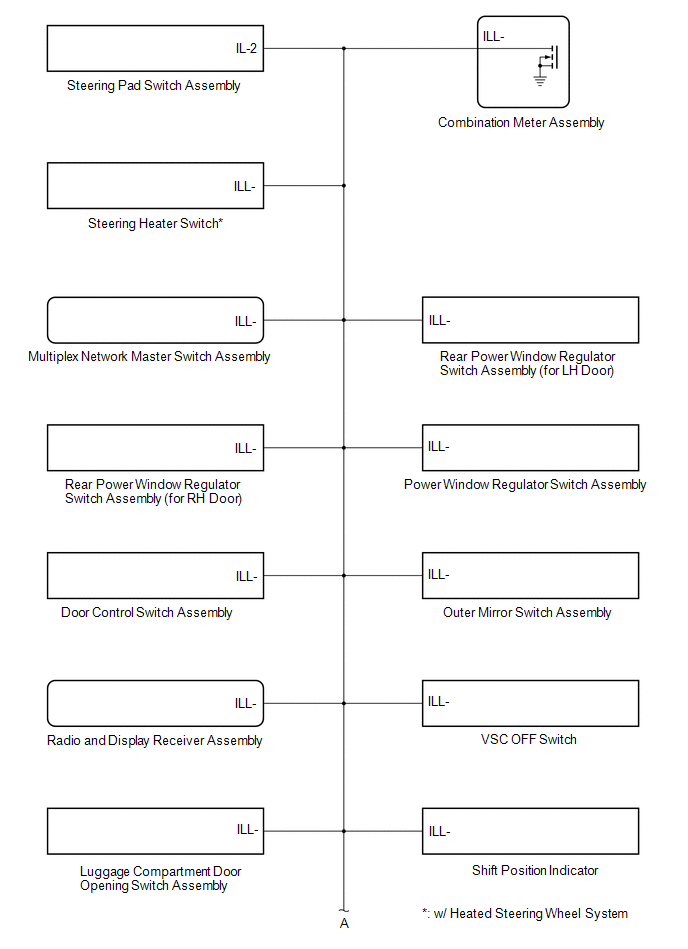

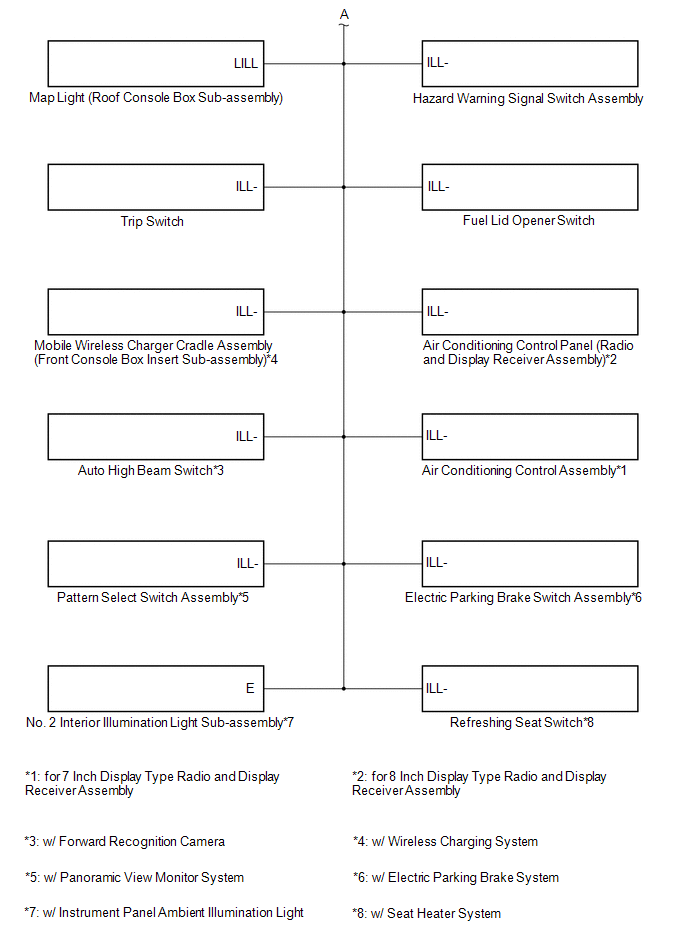

3. ILLUMINATION DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

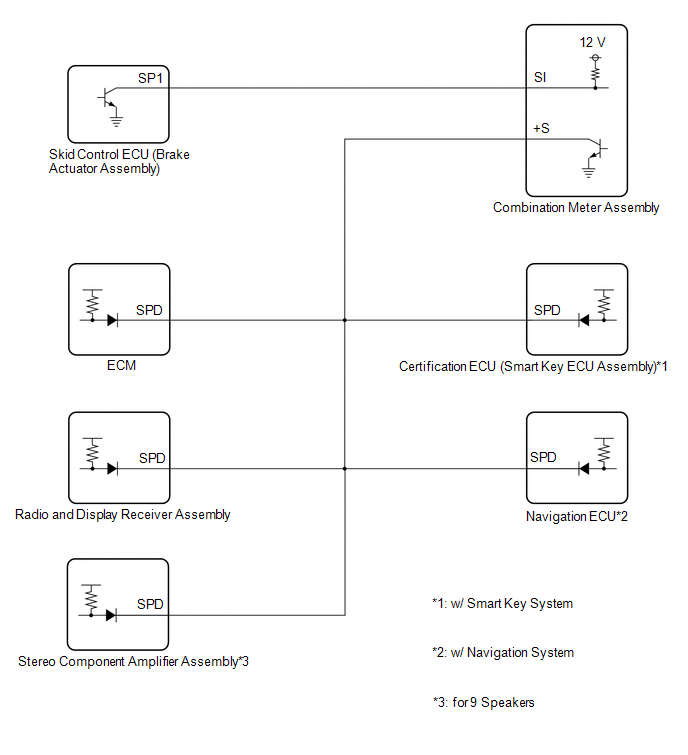

4. SPEED SIGNAL DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
