Disassembly [03/2017 - ]: Procedure

  1. REMOVE COMBINATION METER GLASS

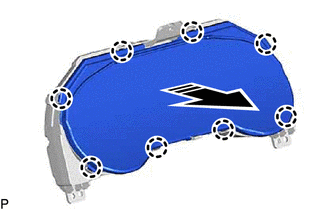

    1. Disengage the 8 claws to remove the combination meter glass.
      GTY768660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
