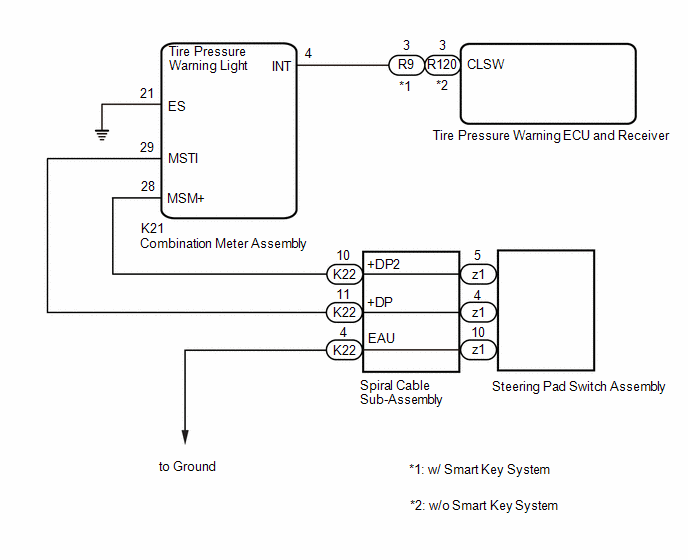

DTC C2198-98: Initialization Switch (for Test Mode DTC) [03/2017 - 09/2019]: Wiring Diagram

GTY1100425

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
