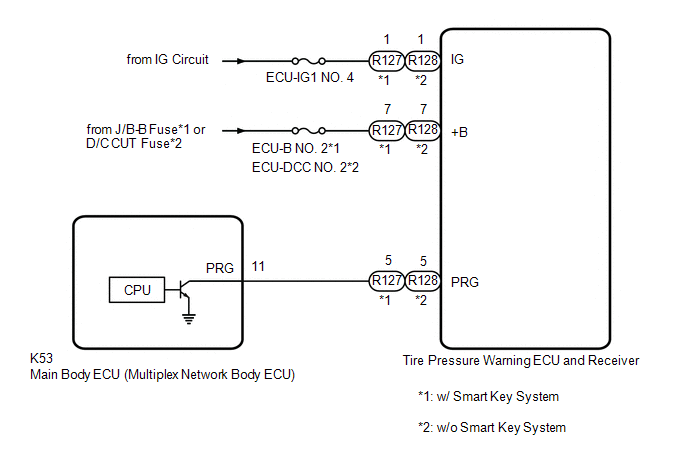

DTC C2179: Tire Pressure Monitor ECU Communication Stop [08/2022 - ]: Wiring Diagram

GTY1098168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
