Installation [03/2020 - ]: Procedure

1. Temporarily install the rear upper control arm assembly LH to the rear suspension member sub-assembly with the bolt and nut.
   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • Insert the bolt with the threaded end facing the front of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

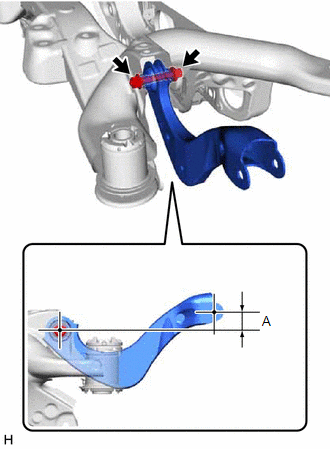

2. Position the rear upper control arm assembly LH as shown in the illustration.

   Reference Length (A)

   1.2 mm (0.0472 in.)

3. Fully tighten the bolt.

   Torque: 73 N*m (744 kgf*cm, 54 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

HINT:

Perform the same procedure as for the LH side.

1. Temporarily install the rear upper control arm assembly LH to the rear suspension member sub-assembly with the bolt and nut.
   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • Insert the bolt with the threaded end facing the front of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Position the rear upper control arm assembly LH as shown in the illustration.

   Reference Length (A)

   10 mm (0.394 in.)

3. Fully tighten the bolt.

   Torque: 73 N*m (744 kgf*cm, 54 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

HINT:

Perform the same procedure as for the LH side.

For 2WD: Refer to INSTALLATION [09/2019 - 10/2020] , or refer to INSTALLATION [10/2020 - ]

For AWD: Refer to INSTALLATION [03/2020 - ]
