Components [03/2020 - ]

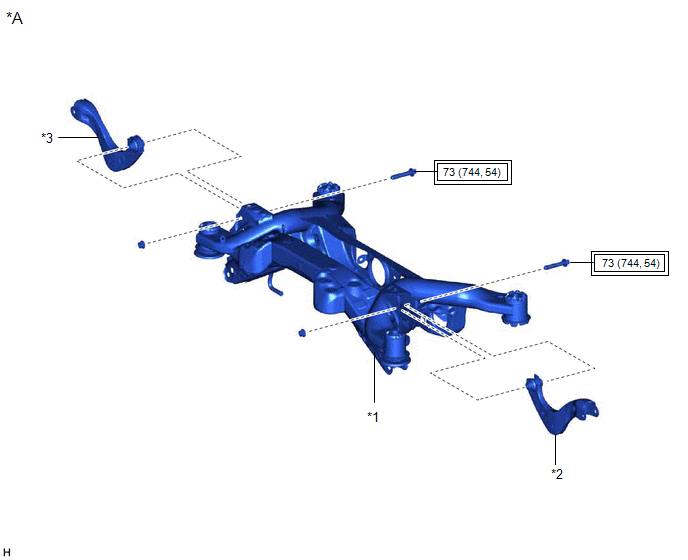

Fig 1: Rear Upper Arm Replacement Components With Torque Specifications [03/2020 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	For 2WD	-	-
*1	REAR SUSPENSION MEMBER SUB-ASSEMBLY	*2	REAR UPPER CONTROL ARM ASSEMBLY LH
*3	REAR UPPER CONTROL ARM ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

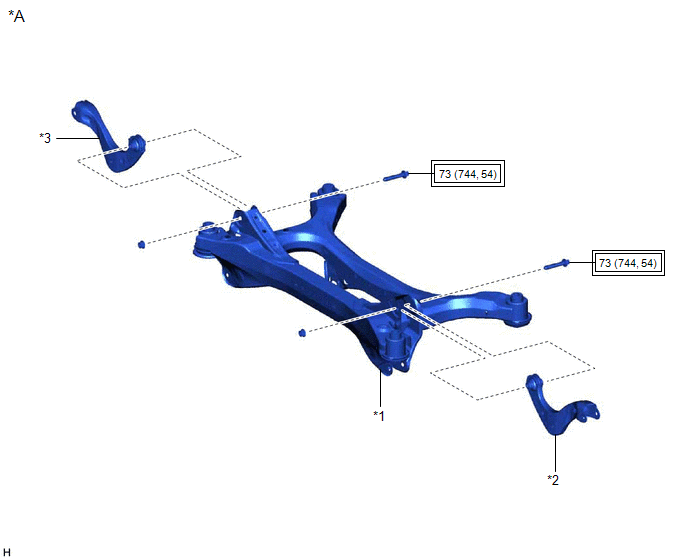

Fig 2: Rear Upper Arm Replacement Components With Torque Specifications [03/2020 - ] (2 Of 2)

Callout	Description	Callout	Description
*A	For AWD	-	-
*1	REAR SUSPENSION MEMBER SUB-ASSEMBLY	*2	REAR UPPER CONTROL ARM ASSEMBLY LH
*3	REAR UPPER CONTROL ARM ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-
