Installation [03/2020 - 10/2020]: Procedure

1. Temporarily install the rear suspension arm bracket to the rear trailing arm assembly with the bolt and nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Insert the bolt from the inside of the vehicle.

2. Position the rear trailing arm assembly as shown in the illustration.

   Reference Length (A)

   For 2WD	120 mm (4.72 in.)
   For AWD	128 mm (5.04 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Upper Surface of Rear Suspension Arm Bracket

3. Fully tighten the nut.

   Torque: 120 N*m (1224 kgf*cm, 89 ft.*lbf)

1. Engage the 4 claws and install the rear suspension arm cover.

1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.
2. Install the rear trailing arm assembly to the vehicle with the 4 bolts.

   Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

3. For 2WD:
   1. Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts.

      Torque: 135 N*m (1377 kgf*cm, 100 ft.*lbf)

4. For AWD:

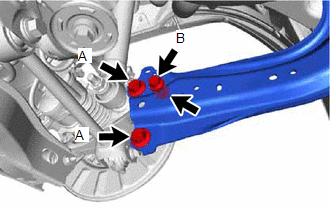

   1. Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 3 bolts and nut.

      Bolt (A)

      Torque: 135 N*m (1377 kgf*cm, 100 ft.*lbf)

      Bolt (B)

      Torque: 75 N*m (765 kgf*cm, 55 ft.*lbf)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the skid control sensor wire to the rear trailing arm assembly with the bolt.

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

2. Engage the 2 clamps.

1. Install the No. 3 parking brake cable assembly to the rear trailing arm assembly with the nut.

   Torque: 15.5 N*m (158 kgf*cm, 11 ft.*lbf)

1. Install the No. 2 parking brake wire assembly to the rear trailing arm assembly with the nut.

   Torque: 15.5 N*m (158 kgf*cm, 11 ft.*lbf)

2. Engage the 2 clamps.

See step  5

1. For RH Side:

   See step  8

1. For LH Side:

   See step  9

1. For RH Side:

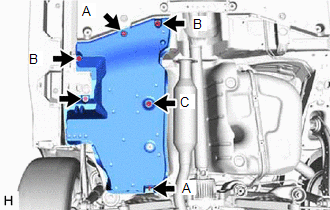

   1. Install the No. 1 floor under cover with the 2 grommets (B) and clip (C).

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Install the bolt and 2 clips (A).

      Bolt

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

1. For LH Side:

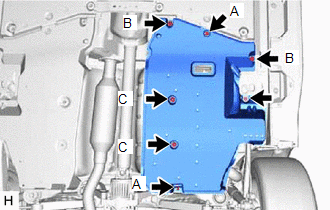

   1. Install the No. 2 floor under cover with the 2 grommets (B) and 2 clips (C).

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Install the bolts and 2 clips (A).

      Bolt

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

Refer to PROCEDURE - Step 1

Refer to ADJUSTMENT [03/2020 - 10/2020]
