Components [03/2020 - ]

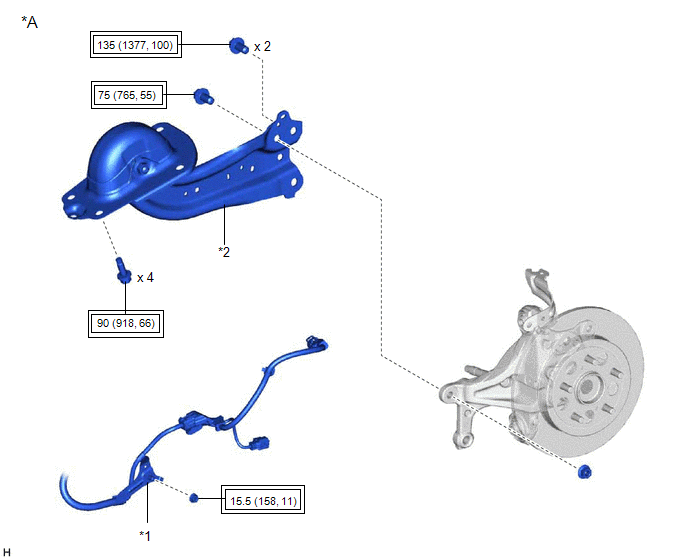

Fig 1: Rear Trailing Arm Replacement Components With Torque Specifications [03/2020 - ] (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	For 2WD	*B	For RH Side
*C	For LH Side	-	-
*1	NO. 1 FLOOR UNDER COVER	*2	NO. 2 FLOOR UNDER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

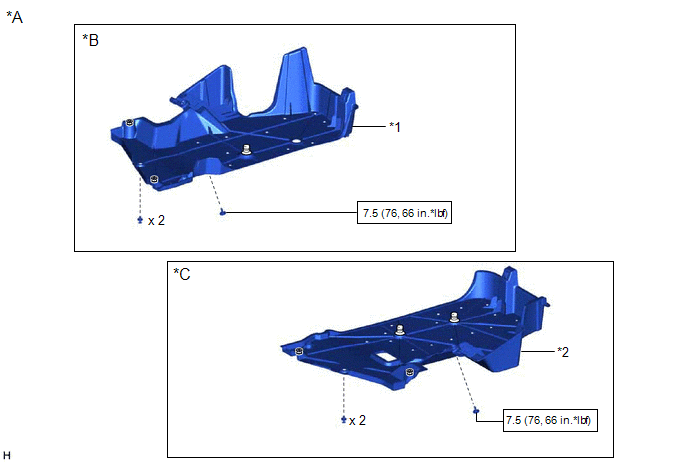

Fig 2: Rear Trailing Arm Replacement Components With Torque Specifications [03/2020 - ] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	For AWD	*B	For RH Side
*C	For LH Side	-	-
*1	NO. 1 FLOOR UNDER COVER	*2	NO. 2 FLOOR UNDER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 3: Rear Trailing Arm Replacement Components With Torque Specifications [03/2020 - ] (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	For 2WD without Electric Parking Brake System	-	-
*1	NO. 3 PARKING BRAKE CABLE ASSEMBLY	*2	REAR STABILIZER LINK ASSEMBLY
*3	REAR TRAILING ARM ASSEMBLY	*4	SKID CONTROL SENSOR WIRE
*5	REAR STABILIZER BAR	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

Fig 4: Rear Trailing Arm Replacement Components With Torque Specifications [03/2020 - ] (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	For 2WD with Electric Parking Brake System	-	-
*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	REAR STABILIZER LINK ASSEMBLY
*3	REAR TRAILING ARM ASSEMBLY	*4	REAR STABILIZER BAR
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

Fig 5: Rear Trailing Arm Replacement Components With Torque Specifications [03/2020 - ] (5 Of 6)

Callout	Description	Callout	Description
*A	For AWD	-	-
*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	REAR TRAILING ARM ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

Fig 6: Rear Trailing Arm Replacement Components With Torque Specifications [03/2020 - ] (6 Of 6)

Callout	Description	Callout	Description
*1	REAR SUSPENSION ARM BRACKET	*2	REAR SUSPENSION ARM COVER
*3	REAR TRAILING ARM ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-
