Removal [03/2017 - 06/2017]: Procedure

Refer to PROCEDURE - Step 1

See step  2

See step  3

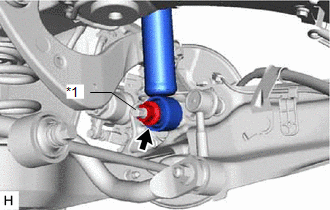

1. Loosen the nut of the rear shock absorber assembly.
   NOTE:

   Hold the rear axle carrier pin while rotating the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Axle Carrier Pin

See step  5

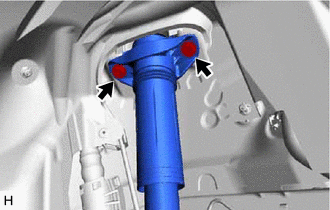

1. Remove the 2 bolts and separate the rear shock absorber assembly from the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.
   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack

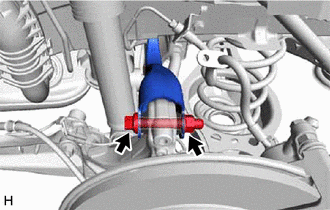

2. Remove the bolt and nut, and separate the rear upper control arm assembly from the rear axle carrier sub-assembly.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the nut, plate washer and rear shock absorber assembly from the rear axle carrier sub-assembly.
   NOTE:

   Hold the rear axle carrier pin while rotating the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Axle Carrier Pin

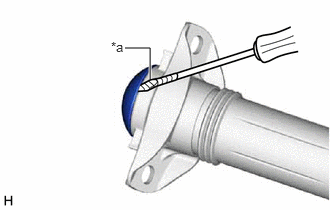

1. Using a screwdriver with its tip wrapped with protective tape, remove the rear shock absorber cap from the rear shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

1. Secure the rear shock absorber assembly in a vise using aluminum plates.
   NOTE:

   Do not overtighten the vise.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

2. Using SST and a 6 mm hexagon socket wrench, hold the rear shock absorber rod and remove the rear support to rear shock absorber nut.
   • SST: 09729-97202
3. Remove the rear suspension support assembly from the rear shock absorber assembly.
