Components [03/2020 - ]
| Callout | Description | Callout | Description |
| *A | For 2WD | *B | For RH Side |
| *C | For LH Side | - | - |
| *1 | NO. 1 FLOOR UNDER COVER | *2 | NO. 2 FLOOR UNDER COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

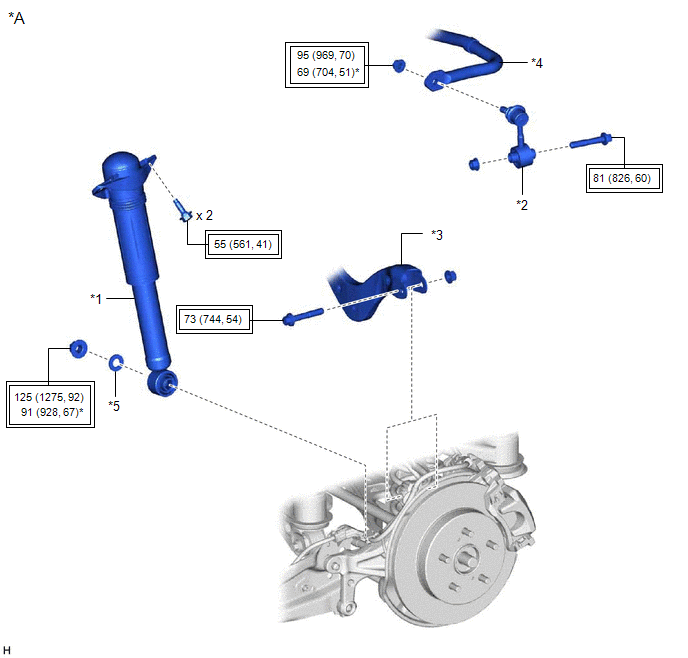

| Callout | Description | Callout | Description |
| *A | For 2WD | - | - |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY | *4 | REAR STABILIZER BAR |
| *5 | PLATE WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |

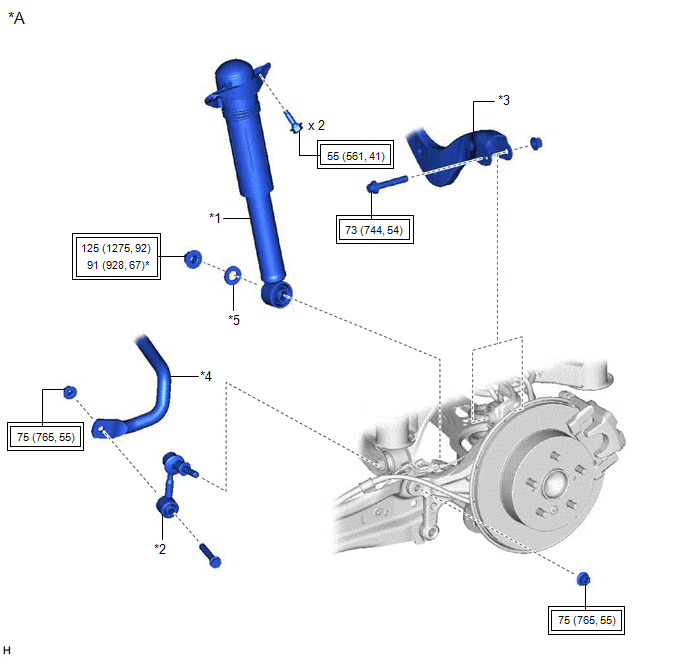

| Callout | Description | Callout | Description |
| *A | For AWD | - | - |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY | *4 | REAR STABILIZER BAR |
| *5 | PLATE WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |
| Callout | Description | Callout | Description |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR SHOCK ABSORBER CAP |
| *3 | REAR SUSPENSION SUPPORT ASSEMBLY | *4 | REAR SUPPORT TO REAR SHOCK ABSORBER NUT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with SST | |
| • | Non-reusable part | * | Precoated part |
