Components [03/2017 - 03/2020]
Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications [03/2017 - 03/2020] (1 Of 3)
| Callout | Description | Callout | Description |
| *A | For RH Side | *B | For LH Side |
| *1 | NO. 1 FLOOR UNDER COVER | *2 | NO. 2 FLOOR UNDER COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications [03/2017 - 03/2020] (2 Of 3)
| Callout | Description | Callout | Description |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY | *4 | REAR STABILIZER BAR |
| *5 | PLATE WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |

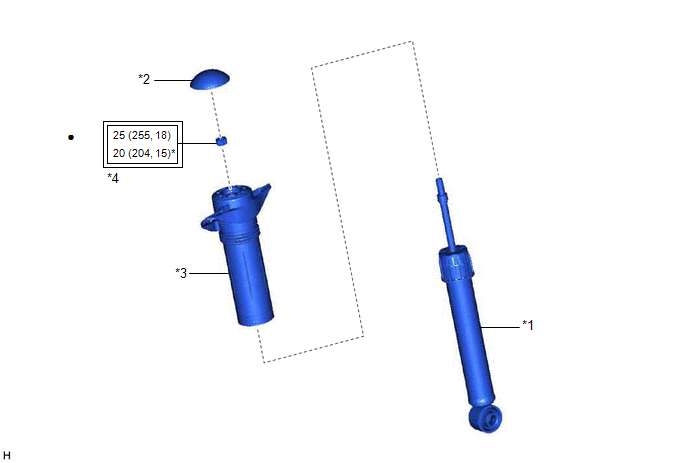

Fig 3: Rear Shock Absorber Replacement Components With Torque Specifications [03/2017 - 03/2020] (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR SHOCK ABSORBER CAP |
| *3 | REAR SUSPENSION SUPPORT ASSEMBLY | *4 | REAR SUPPORT TO REAR SHOCK ABSORBER NUT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with SST | |
| • | Non-reusable part | * | Precoated part |
