Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 2 FLOOR UNDER COVER (for LH Side)

    See step  2

  3. REMOVE NO. 1 FLOOR UNDER COVER (for RH Side)

    See step  3

  4. REMOVE REAR STABILIZER LINK ASSEMBLY

    See step  5

  5. REMOVE REAR COIL SPRING

    See step  5

  6. REMOVE REAR LOWER COIL SPRING INSULATOR

    See step  7

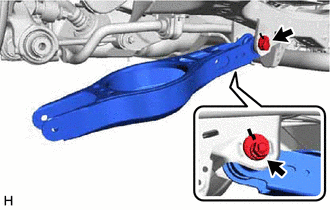

  7. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY
    1. Remove the nut, No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear No. 2 suspension arm assembly.
      NOTE:

      Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

      GTY763103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

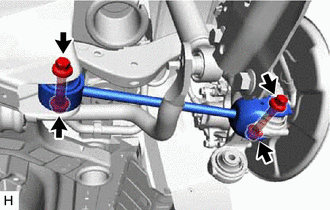

  8. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY
    1. Remove the 2 bolts, 2 nuts and rear No. 1 suspension arm assembly from the rear axle carrier sub-assembly and rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY763035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
