Components [03/2017 - 03/2020]

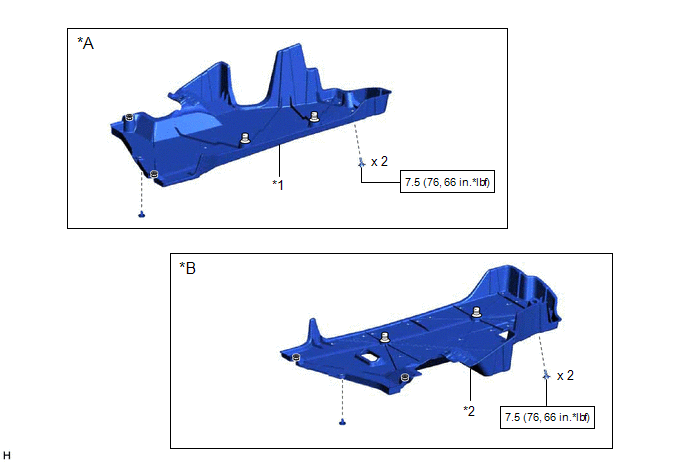

Fig 1: Rear Lower Arm Replacement Components With Torque Specifications [03/2017 - 03/2020] (1 Of 3)
| Callout | Description | Callout | Description |
| *A | For RH Side | *B | For LH Side |
| *1 | NO. 1 FLOOR UNDER COVER | *2 | NO. 2 FLOOR UNDER COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

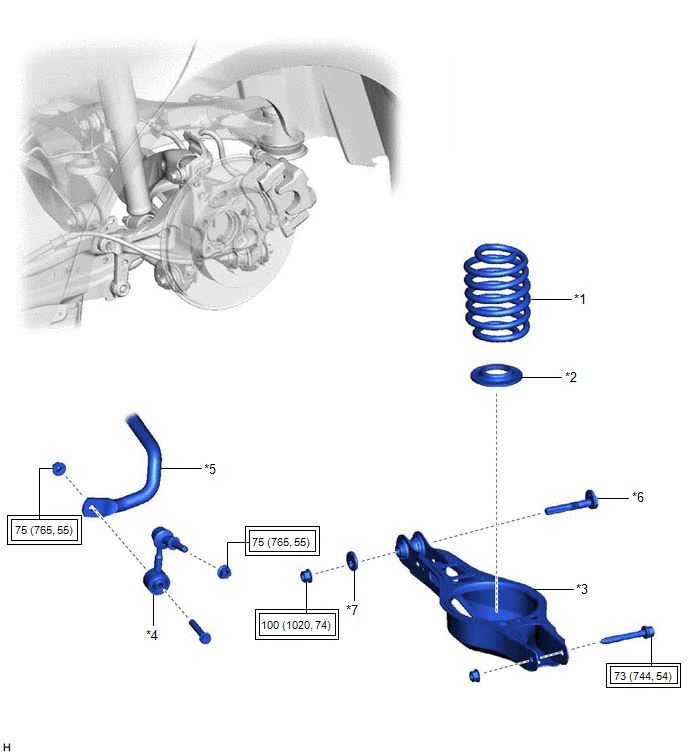

Fig 2: Rear Lower Arm Replacement Components With Torque Specifications [03/2017 - 03/2020] (2 Of 3)
| Callout | Description | Callout | Description |
| *1 | REAR COIL SPRING | *2 | REAR LOWER COIL SPRING INSULATOR |
| *3 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *4 | REAR STABILIZER LINK ASSEMBLY |
| *5 | REAR STABILIZER BAR | *6 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
| *7 | NO. 2 CAMBER ADJUST CAM | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

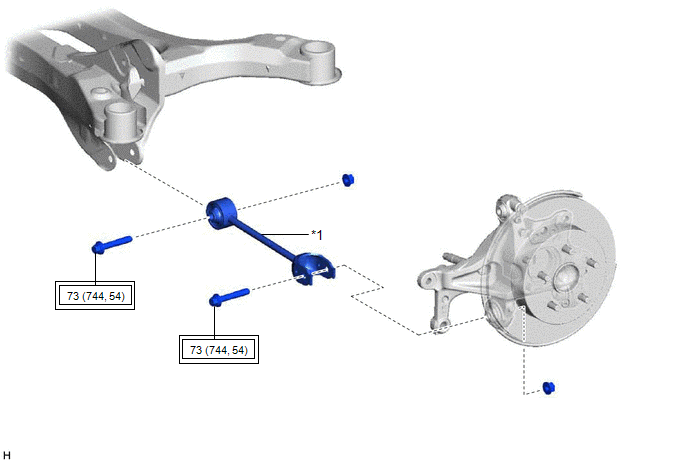

Fig 3: Rear Lower Arm Replacement Components With Torque Specifications [03/2017 - 03/2020] (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
