Components [03/2020 - ]

Fig 1: Rear Suspension Member (For AWD) Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SPARE WHEEL COVER ASSEMBLY

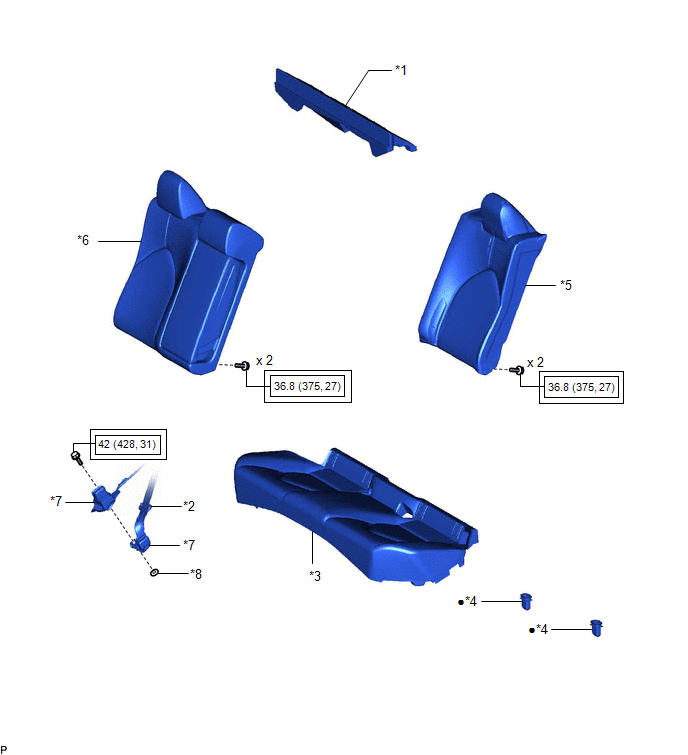

Fig 2: Rear Suspension Member (For AWD) Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE COMPARTMENT TRIM INNER PAD	*2	REAR CENTER SEAT OUTER BELT ASSEMBLY
*3	REAR SEAT CUSHION ASSEMBLY	*4	REAR SEAT CUSHION LOCK HOOK
*5	REAR SEATBACK ASSEMBLY LH	*6	REAR SEATBACK ASSEMBLY RH
*7	REAR SEAT INNER BELT ASSEMBLY RH	*8	WASHER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	•	Non-reusable part

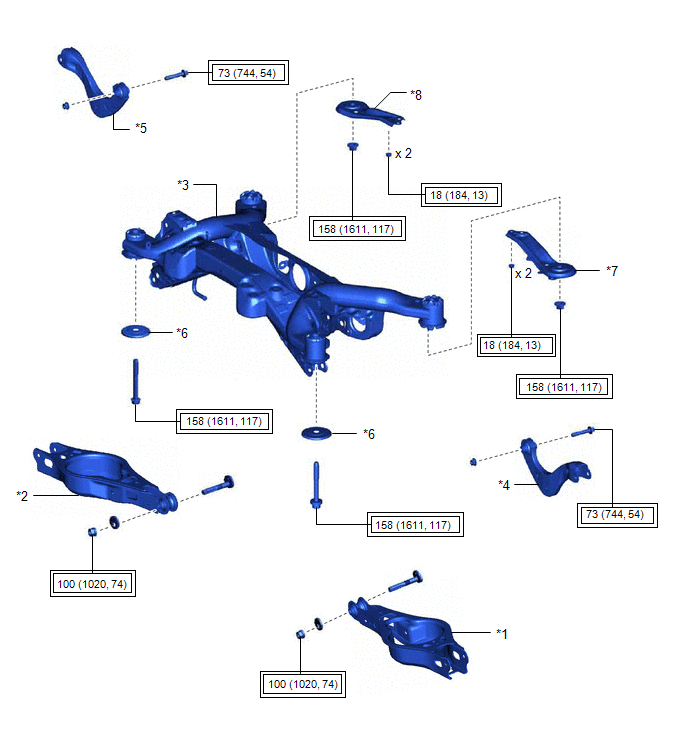

Fig 3: Rear Suspension Member (For AWD) Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	REAR NO. 2 SUSPENSION ARM ASSEMBLY LH	*2	REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
*3	REAR SUSPENSION MEMBER SUB-ASSEMBLY	*4	REAR UPPER CONTROL ARM ASSEMBLY LH
*5	REAR UPPER CONTROL ARM ASSEMBLY RH	*6	REAR SUSPENSION MEMBER LOWER STOPPER
*7	REAR SUSPENSION MEMBER LOWER BRACE LH	*8	REAR SUSPENSION MEMBER LOWER BRACE RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

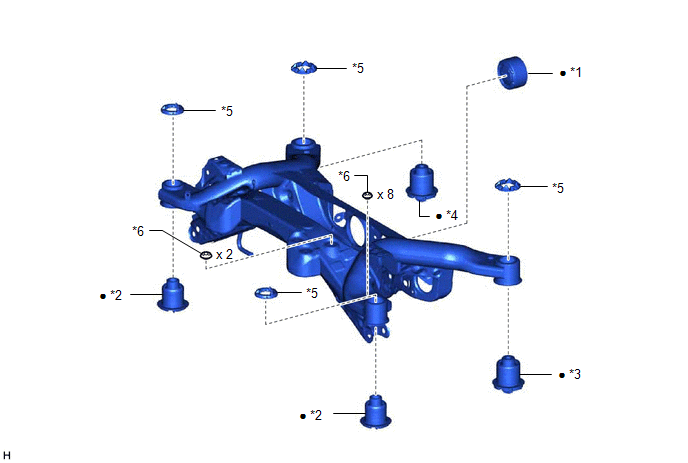

Fig 4: Rear Suspension Member (For AWD) Replacement Components (4 Of 4)

*1	REAR NO. 1 DIFFERENTIAL MOUNT CUSHION	*2	REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION
*3	REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH	*4	REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
*5	REAR SUSPENSION MEMBER CUSHION	*6	HOLE PLUG
•	Non-reusable part	-	-
