Components [03/2017 - 06/2017]

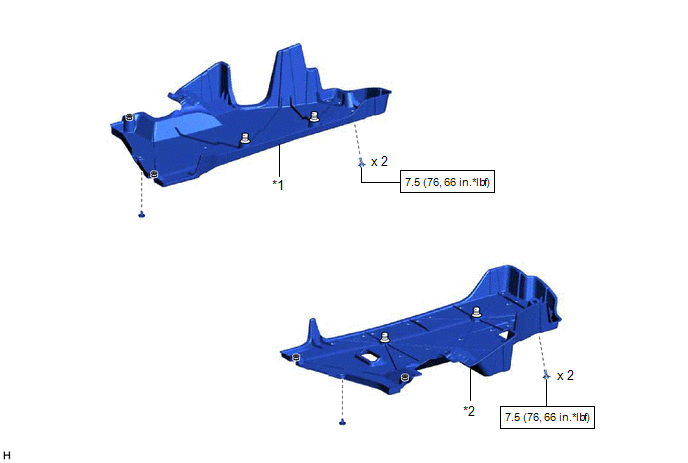

Fig 1: Rear Suspension Member (For 2WD) Replacement Components With Torque Specifications [03/2017 - 06/2017] (1 Of 5)
| Callout | Description | Callout | Description |
| *1 | NO. 1 FLOOR UNDER COVER | *2 | NO. 2 FLOOR UNDER COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

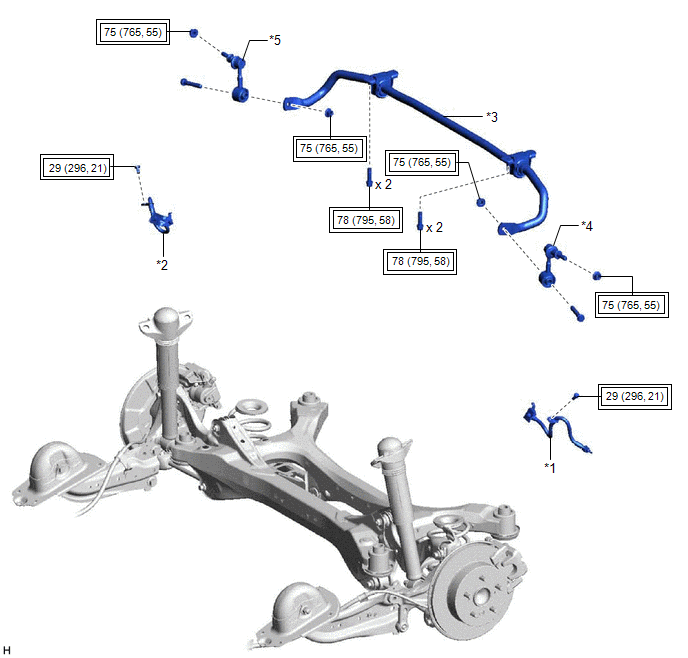

Fig 2: Rear Suspension Member (For 2WD) Replacement Components With Torque Specifications [03/2017 - 06/2017] (2 Of 5)
| Callout | Description | Callout | Description |
| *1 | REAR FLEXIBLE HOSE LH | *2 | REAR FLEXIBLE HOSE RH |
| *3 | REAR STABILIZER BAR | *4 | REAR STABILIZER LINK ASSEMBLY LH |
| *5 | REAR STABILIZER LINK ASSEMBLY RH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

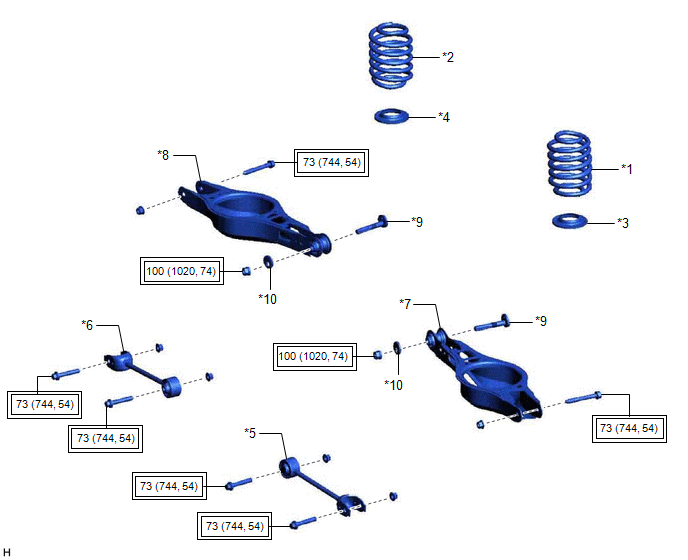

Fig 3: Rear Suspension Member (For 2WD) Replacement Components With Torque Specifications [03/2017 - 06/2017] (3 Of 5)
| Callout | Description | Callout | Description |
| *1 | REAR COIL SPRING LH | *2 | REAR COIL SPRING RH |
| *3 | REAR LOWER COIL SPRING INSULATOR LH | *4 | REAR LOWER COIL SPRING INSULATOR RH |
| *5 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH | *6 | REAR NO. 1 SUSPENSION ARM ASSEMBLY RH |
| *7 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | *8 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
| *9 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY | *10 | NO. 2 CAMBER ADJUST CAM |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

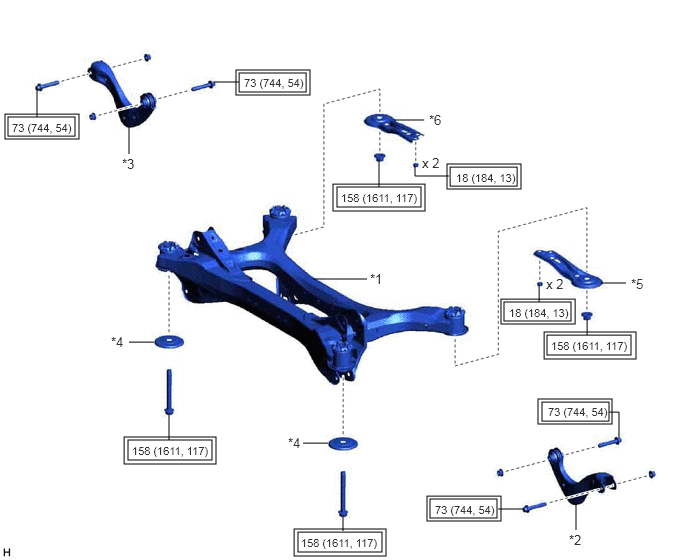

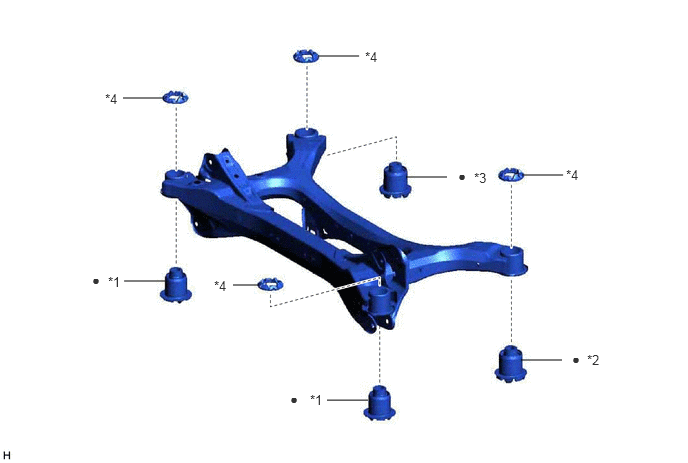

Fig 4: Rear Suspension Member (For 2WD) Replacement Components With Torque Specifications [03/2017 - 06/2017] (4 Of 5)
| Callout | Description | Callout | Description |
| *1 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *2 | REAR UPPER CONTROL ARM ASSEMBLY LH |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY RH | *4 | REAR SUSPENSION MEMBER LOWER STOPPER |
| *5 | REAR SUSPENSION MEMBER LOWER BRACE LH | *6 | REAR SUSPENSION MEMBER LOWER BRACE RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
| *1 | REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION | *2 | REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH |
| *3 | REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH | *4 | REAR SUSPENSION MEMBER CUSHION |
| • | Non-reusable part | - | - |
