Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 2 FLOOR UNDER COVER
    1. Remove the 2 bolts and clip (A).
      GTY761070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 grommets (B) and 2 clips (C) to remove the No. 2 floor under cover.
  3. REMOVE NO. 1 FLOOR UNDER COVER
    1. Remove the 2 bolts and clip (A).
      GTY759967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 grommets (B) and 2 clips (C) to remove the No. 1 floor under cover.
  4. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [03/2017 - 06/2017]

  5. REMOVE REAR STABILIZER LINK ASSEMBLY LH
    1. Loosen the nut (A) of the rear stabilizer link assembly LH.

      HINT:

      If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

      GTY747054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the nut (B) of the rear stabilizer link assembly LH.
    3. Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.
      NOTE:
      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
      GTY753160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Jack

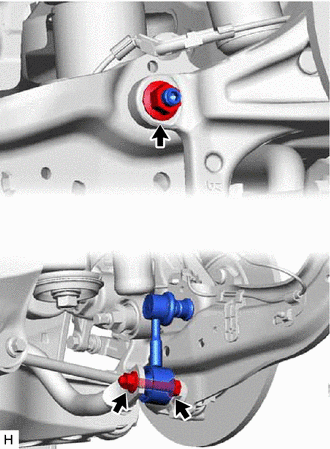

    4. Remove the bolt, 2 nuts and rear stabilizer link assembly LH.
      GTY773488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  7. REMOVE REAR STABILIZER BAR

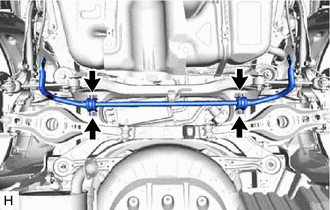

    1. Remove the 4 bolts, rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings from the rear suspension member sub-assembly.
      GTY763023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR NO. 1 STABILIZER BAR BRACKET

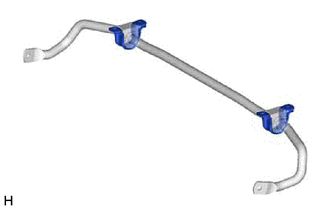

    1. Remove the 2 rear No. 1 stabilizer bar brackets from the 2 rear stabilizer bushings.
      GTY763024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR STABILIZER BUSHING
    1. Remove the 2 rear stabilizer bushings from the rear stabilizer bar.
      GTY773487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
