Components [03/2017 - ]

Fig 1: Rear Stabilizer Bar (For 2WD) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 FLOOR UNDER COVER	*2	NO. 2 FLOOR UNDER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

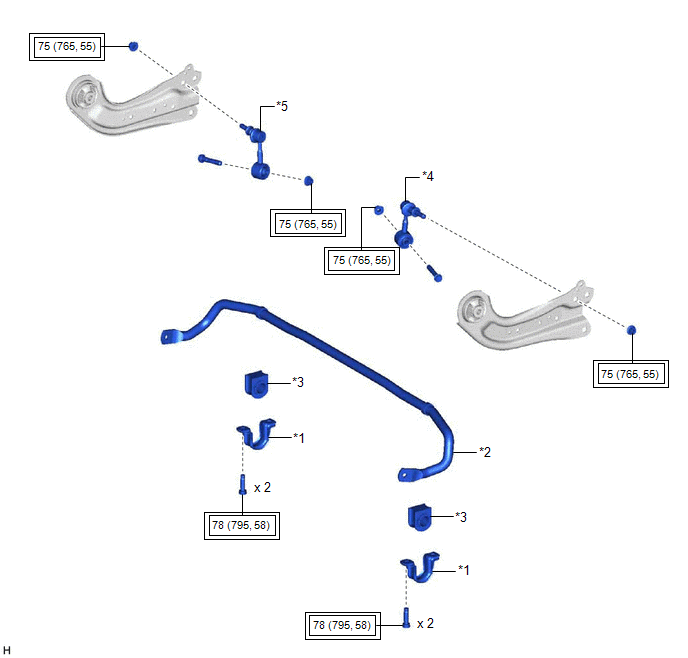

Fig 2: Rear Stabilizer Bar (For 2WD) Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	REAR NO. 1 STABILIZER BAR BRACKET	*2	REAR STABILIZER BAR
*3	REAR STABILIZER BUSHING	*4	REAR STABILIZER LINK ASSEMBLY LH
*5	REAR STABILIZER LINK ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-
