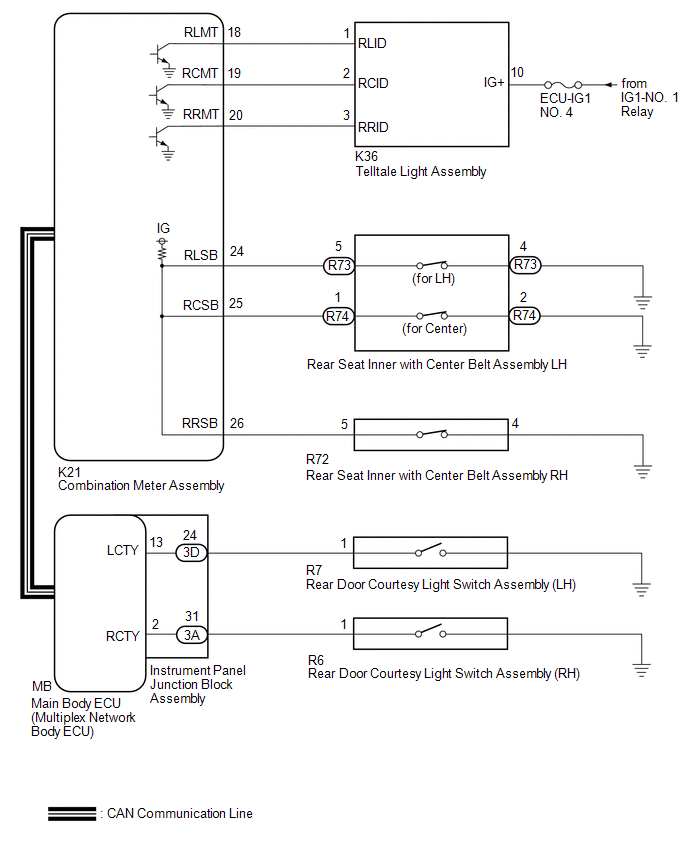

Rear Seat Belt Warning Light Malfunction [03/2017 - 10/2020]: Wiring Diagram

GTY768047

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
