Front Passenger Side Seat Belt Warning Light does not Operate [06/2017 - 09/2019]: Wiring Diagram

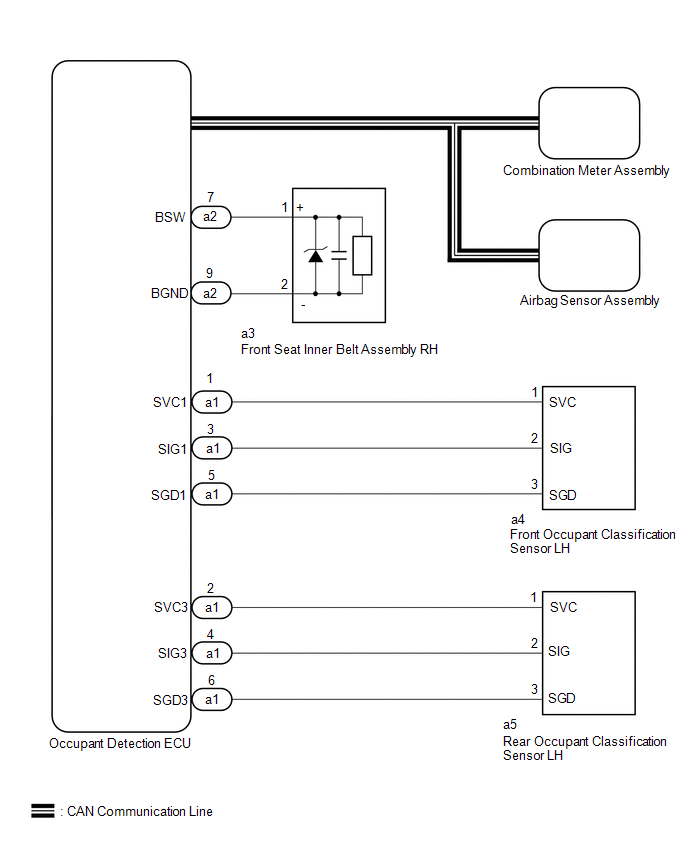

for TMC Made:

GTY772241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for TMMK Made:

GTY757383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
