Inspection [03/2017 - ]: Procedure
- INSPECT TELLTALE LIGHT ASSEMBLY
- Apply battery voltage to the connector according to the table below.
OK
Battery Connection Result Battery positive (+) - Terminal 10
Battery negative (-) - Terminal 3Rear seat belt warning light (RH) comes on Battery positive (+) - Terminal 10
Battery negative (-) - Terminal 2Rear seat belt warning light (center) comes on Battery positive (+) - Terminal 10

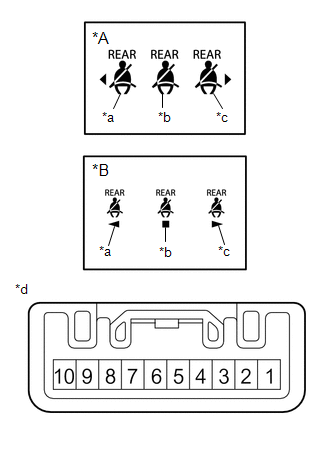

Battery negative (-) - Terminal 1Rear seat belt warning light (LH) comes on *A For 7 Inch Display *B For 8 Inch Display *a Rear seat belt warning light (LH) *b Rear seat belt warning light (center) *c Rear seat belt warning light (RH) *d Component without harness connected
(Telltale Light Assembly)If the result is not as specified, replace the telltale light assembly.
- Apply battery voltage to the connector according to the table below.
