Installation [03/2017 - 06/2017]: Procedure

  1. INSTALL REAR SEAT BELT RETRACTOR COVER
    1. Install the rear seat belt retractor cover as shown in the illustration.

      HINT:

      Use the same procedure for the RH side and LH side.

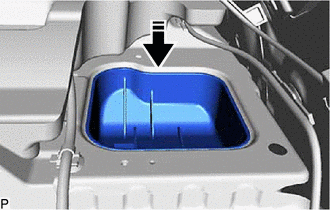

      GTY753572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSPECT REAR SEAT OUTER BELT ASSEMBLY

    See step  1

  3. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH
    1. Engage the guide and temporarily install the rear seat outer belt assembly LH with the 2 bolts.

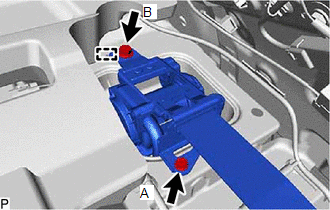

      GTY745977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fully tighten the bolt (A), and then the bolt (B) to install the rear seat outer belt assembly LH.

      Bolt (A)

      Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

      Bolt (B)

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    3. Connect the pretensioner connector and lock the locking button as shown in the illustration.
      NOTE:

      Securely lock the locking button.

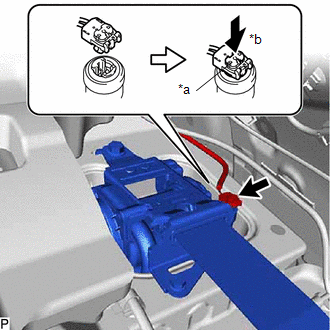

      GTY741748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      *b Lock
    4. Check that the ELR locks.
      NOTE:

      This check should be performed with the rear seat outer belt assembly LH installed to the vehicle.

      1. With the rear seat outer belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.
  4. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  5. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.
    2. Engage the 3 clips and 5 guides.
    3. Install the package tray trim panel assembly with the 2 clips.
    4. Return the rear seatback assembly LH and rear seatback assembly RH to their original position.
  6. INSTALL REAR SEAT SHOULDER BELT HOLE COVER
    1. Engage the 2 guides and 2 claws to install the rear seat shoulder belt hole cover.

      HINT:

      Use the same procedure for the other rear seat shoulder belt hole covers.

  7. INSTALL CENTER STOP LIGHT SET

    Refer to INSTALLATION [03/2017 - ]

  8. CONNECT REAR SEAT OUTER BELT ASSEMBLY LH
    1. Install the floor anchor of the rear seat outer belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the rear seat outer belt assembly LH to overlap the protruding parts of the floor panel.

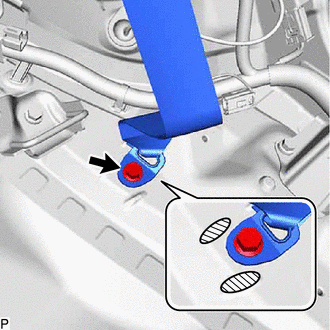

      GTY770058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part
  9. CONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. INSTALL INNER ROOF SIDE GARNISH LH

    Refer to PROCEDURE - Step 20

  11. INSTALL INNER ROOF SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  12. INSTALL REAR SIDE SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  13. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  14. INSTALL REAR SIDE SEATBACK ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  15. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 1

  16. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 7

  17. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 8

  18. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 9

  19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [03/2017 - 06/2017]

  20. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [03/2017 - ]

  21. INSPECT SRS WARNING LIGHT

    Refer to OPERATION CHECK [03/2017 - 06/2017]
