Installation [03/2017 - 06/2017]: Procedure

INSTALL SEAT BELT RETRACTOR COVER

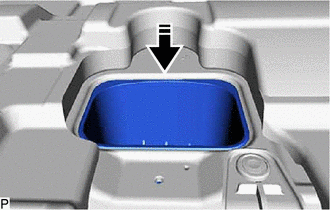

Install the seat belt retractor cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

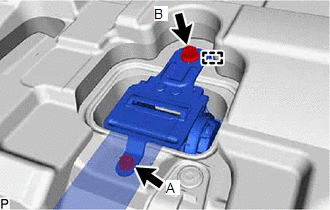

Engage the guide and temporarily install the rear center seat outer belt assembly with the 2 bolts.

Fully tighten the bolt (A), and then the bolt (B) to install the rear center seat outer belt assembly.
Bolt (A)

Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

Bolt (B)

Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
Check that the ELR locks.
NOTE:
This check should be performed with the rear center seat outer belt assembly installed to the vehicle.
1. With the rear center seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
See step 5
INSTALL REAR SEAT SHOULDER BELT HOLE COVER
See step 6
INSTALL CENTER STOP LIGHT SET
Refer to INSTALLATION [03/2017 - ]
CONNECT REAR SEAT OUTER BELT ASSEMBLY LH
See step 8
CONNECT REAR SEAT OUTER BELT ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL INNER ROOF SIDE GARNISH LH
Refer to PROCEDURE - Step 20
INSTALL INNER ROOF SIDE GARNISH RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR SIDE SEATBACK ASSEMBLY LH
Refer to PROCEDURE - Step 1
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
INSTALL REAR SIDE SEATBACK ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 1
INSTALL REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 7
INSTALL REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 8
CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
Refer to PROCEDURE - Step 9
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [03/2017 - 06/2017]
PERFORM DIAGNOSTIC SYSTEM CHECK
Refer to DTC CHECK / CLEAR [03/2017 - ]
INSPECT SRS WARNING LIGHT
Refer to OPERATION CHECK [03/2017 - 06/2017]
