Removal [06/2017 - 09/2019]: Procedure

  1. REMOVE SPARE WHEEL COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

    Refer to REMOVAL [06/2017 - 10/2020]

  3. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fold Down Seat Type)

    For TMC Made:

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

    For TMC Made:

    Refer to PROCEDURE - Step 4

    For TMMK Made:

    Refer to PROCEDURE - Step 7

  5. REMOVE REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 8

  6. REMOVE REAR SEATBACK ASSEMBLY LH (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 9

  7. REMOVE REAR SEATBACK ASSEMBLY RH (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 10

  8. REMOVE LUGGAGE COMPARTMENT TRIM INNER PAD (for Fold Down Seat Type)

    Refer to PROCEDURE - Step 4

  9. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (for TMC Made)
    1. Disconnect the connector.
      GTY753460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the bolt and rear seat inner with center belt assembly RH.

      HINT:

      The bolt cannot be removed from the rear seat inner with center belt assembly RH.

  10. REMOVE REAR SEAT INNER BELT ASSEMBLY RH (for TMMK Made)

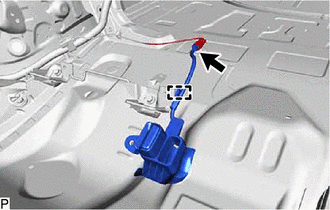

    1. Disconnect the connector.
      GTY918341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to remove the rear seat inner belt assembly RH.

      HINT:

      As the rear seat inner belt assembly RH cannot be separated from the rear center seat outer belt assembly, when replacing the rear seat inner belt assembly RH with a new one, the rear center seat outer belt assembly will also be replaced.

      Refer to REMOVAL [06/2017 - 09/2019]
