Components [03/2017 - 06/2017]

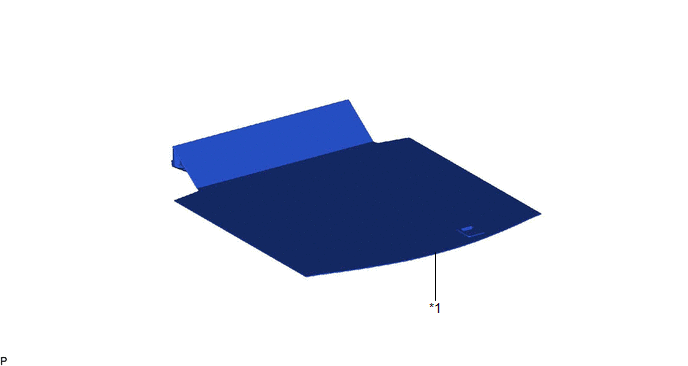

Fig 1: Rear Seat Inner Belt Assembly (For RH Side) Replacement Components [03/2017 - 06/2017] (1 Of 2)
| *1 | SPARE WHEEL COVER ASSEMBLY | - | - |

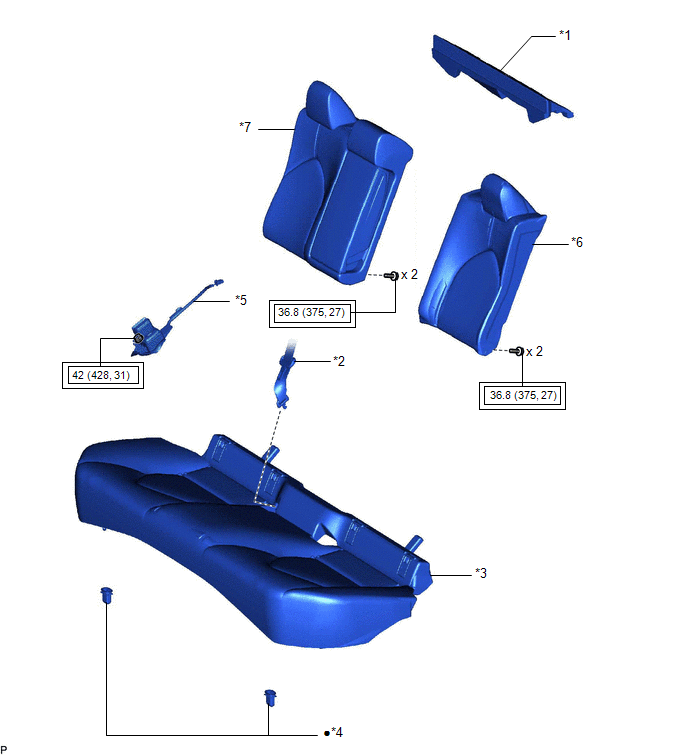

Fig 2: Rear Seat Inner Belt Assembly (For RH Side) Replacement Components With Torque Specifications [03/2017 - 06/2017] (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | LUGGAGE COMPARTMENT TRIM INNER PAD | *2 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
| *3 | REAR SEAT CUSHION ASSEMBLY | *4 | REAR SEAT CUSHION LOCK HOOK |
| *5 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH | *6 | REAR SEATBACK ASSEMBLY LH |
| *7 | REAR SEATBACK ASSEMBLY RH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
