Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE SPARE WHEEL COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 5

  5. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  6. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 7

  7. REMOVE LUGGAGE COMPARTMENT TRIM INNER PAD

    Refer to PROCEDURE - Step 4

  8. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

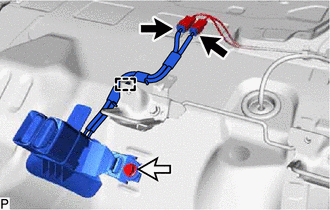

    1. Disconnect the 2 connectors.
      GTY753458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the bolt and rear seat inner with center belt assembly LH.

      HINT:

      The bolt cannot be removed from the rear seat inner with center belt assembly LH.
