Installation [03/2017 - 06/2017]: Procedure

  1. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Install the rear seat inner with center belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      Do not allow the anchor part of the rear seat inner with center belt assembly LH to overlap the protruding parts of the vehicle body.

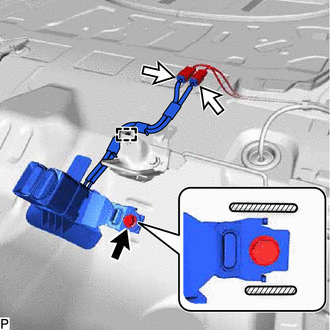

      GTY763303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protruding Part
    2. Engage the clamp.
    3. Connect the 2 connectors.
  2. INSTALL LUGGAGE COMPARTMENT TRIM INNER PAD

    Refer to PROCEDURE - Step 11

  3. INSTALL REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  4. INSTALL REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 6

  5. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 7

  6. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 8

  7. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 9

  8. INSTALL SPARE WHEEL COVER ASSEMBLY

    Refer to PROCEDURE - Step 10
