Inspection [03/2017 - ]: Procedure
- INSPECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
- Inspect the rear seat inner with center belt assembly LH (for LH).
- Measure the resistance according to the value(s) in the table below.

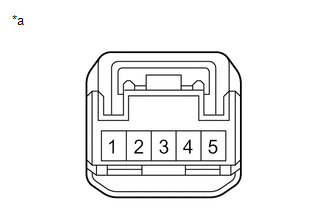

*a Component without harness connected
(Rear Seat Inner with Center Belt Assembly LH (for LH))Standard Resistance
Tester Connection Condition Specified Condition 5 - 4 Rear LH seat belt unfastened Below 1 Ω Rear LH seat belt fastened 10 kΩ or higher If the result is not as specified, replace the rear seat inner with center belt assembly LH.
- Measure the resistance according to the value(s) in the table below.
- Inspect the rear seat inner with center belt assembly LH (for center).
- Measure the resistance according to the value(s) in the table below.

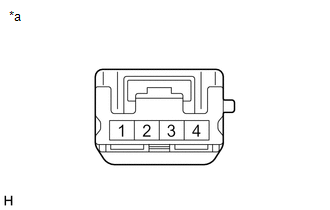

*a Component without harness connected
(Rear Seat Inner with Center Belt Assembly LH (for Center))Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 Rear center seat belt unfastened Below 1 Ω Rear center seat belt fastened 10 kΩ or higher If the result is not as specified, replace the rear seat inner with center belt assembly LH.
- Measure the resistance according to the value(s) in the table below.
- Inspect the rear seat inner with center belt assembly LH (for LH).
