Components [09/2019 - ]
| *1 | SPARE WHEEL COVER ASSEMBLY | - | - |

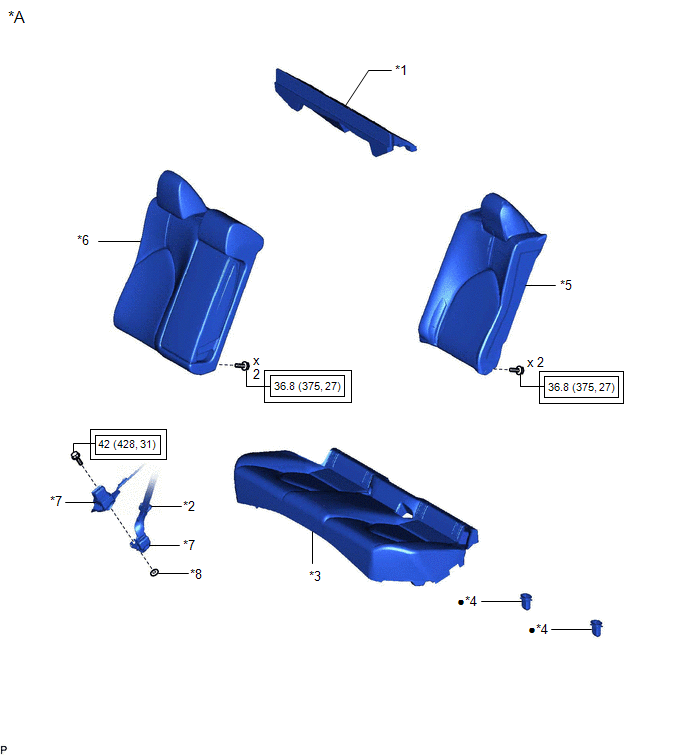

Fig 2: Rear Seat Inner Belt Assembly (For LH Side) Replacement Components With Torque Specifications [09/2019 - ] (2 Of 3)
| Callout | Description | Callout | Description |
| *A | For Fold Down Seat Type | - | - |
| *1 | LUGGAGE COMPARTMENT TRIM INNER PAD | *2 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
| *3 | REAR SEAT CUSHION ASSEMBLY | *4 | REAR SEAT CUSHION LOCK HOOK |
| *5 | REAR SEATBACK ASSEMBLY LH | *6 | REAR SEATBACK ASSEMBLY RH |
| *7 | REAR SEAT INNER BELT ASSEMBLY RH | *8 | WASHER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
Fig 3: Rear Seat Inner Belt Assembly (For LH Side) Replacement Components With Torque Specifications [09/2019 - ] (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
