Removal [03/2017 - 06/2017]: Procedure
- PRECAUTION WARNING:
Be sure to read Precaution thoroughly before servicing.
Refer to PRECAUTION [03/2017 - 06/2017]
NOTE:After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [03/2017 - 06/2017]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- If an airbag deploys for any reason, it may cause a serious injury.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [03/2017 - 06/2017]
- REMOVE FRONT DOOR SCUFF PLATE
Refer to PROCEDURE - Step 4
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
- Disconnect the front door opening trim weatherstrip.
- REMOVE REAR DOOR SCUFF PLATE
Refer to PROCEDURE - Step 8
- DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
- Disconnect the rear door opening trim weatherstrip.

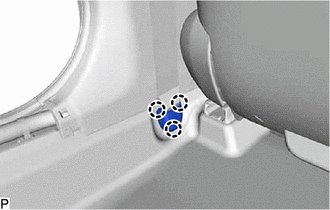

- REMOVE LAP BELT OUTER ANCHOR COVER

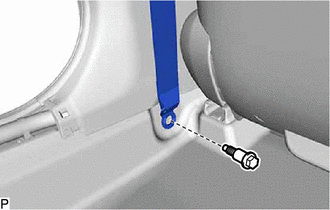

- DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
- REMOVE LOWER CENTER PILLAR GARNISH
Refer to PROCEDURE - Step 12
- REMOVE UPPER CENTER PILLAR GARNISH
Refer to PROCEDURE - Step 13
- REMOVE FRONT SEAT OUTER BELT ASSEMBLY

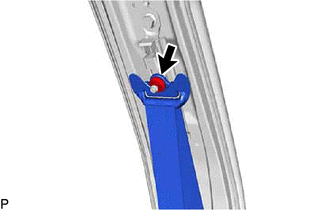

- Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

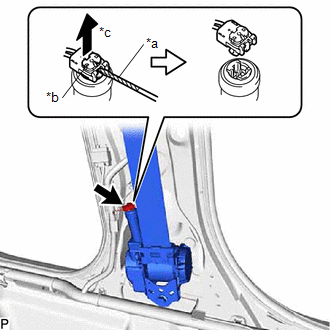

- Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
*a Protective Tape *b Locking Button *c Release HINT:
Tape the screwdriver tip before use.

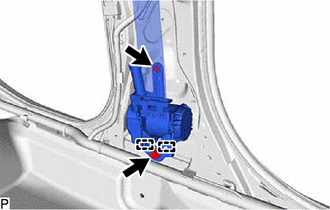

- Remove the 2 bolts.
- Disengage the 2 guides to remove the front seat outer belt assembly.
- Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

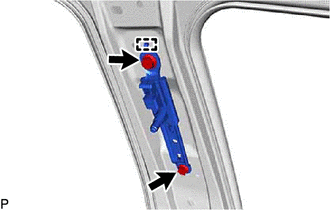

- REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
