Installation [03/2017 - 06/2017]: Procedure

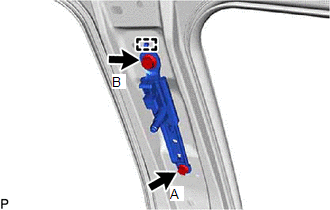

1. Engage the guide and temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Fully tighten the bolt (A), and then the bolt (B) to install the front shoulder belt anchor adjuster assembly.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

See step  1

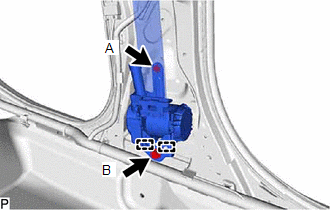

1. Engage the 2 guides and temporarily install the front seat outer belt assembly with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Fully tighten the bolt (A), and then the bolt (B) to install the front seat outer belt assembly.

   Bolt (A)

   Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

   Bolt (B)

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

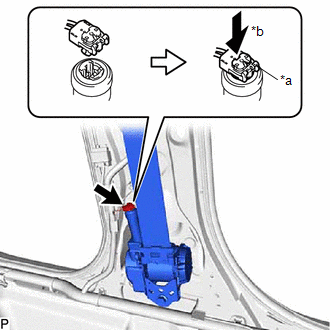

3. Connect the pretensioner connector and lock the locking button as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Locking Button
   *b	Lock

   NOTE:

   Securely lock the locking button.

4. Connect the shoulder anchor of the front seat outer belt assembly with the nut.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

5. Check that the ELR locks.
   NOTE:

   This check should be performed with the front seat outer belt assembly installed to the vehicle.

   1. With the front seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

Refer to PROCEDURE - Step 21

Refer to PROCEDURE - Step 22

1. Connect the floor anchor of the front seat outer belt assembly with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

1. Engage the 3 claws to install the lap belt outer anchor cover.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 26

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 30

Refer to DTC CHECK / CLEAR [03/2017 - ]

Refer to OPERATION CHECK [03/2017 - 06/2017]
