Installation [03/2017 - 06/2017]: Procedure

  1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

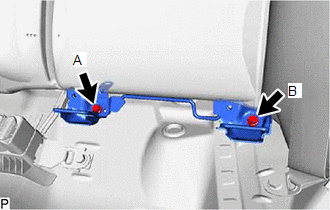

    1. Temporarily install the child restraint seat anchor bracket sub-assembly LH with the 2 bolts.
      GTY742815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fully tighten the bolt (A), and then the bolt (B) to install the child restraint seat anchor bracket sub-assembly LH.

      Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

    3. Engage each clamp.
  2. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 7

  4. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 8

  5. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 9
