Components [06/2017 - 09/2019]

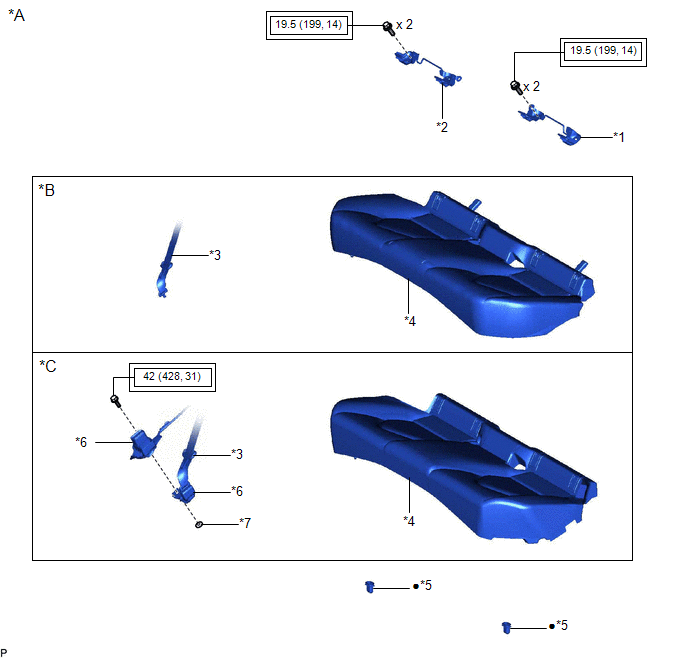

Fig 1: Child Restraint Seat Anchor Bracket Replacement Components With Torque Specifications [06/2017 - 09/2019] (1 Of 2)
| Callout | Description | Callout | Description |
| *A | For Fixed Seat Type | - | - |
| *1 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH | *2 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH |
| *3 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *4 | REAR SEAT CUSHION ASSEMBLY |
| *5 | REAR SEAT CUSHION LOCK HOOK | *6 | REAR SEAT INNER BELT ASSEMBLY RH |
| *7 | WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

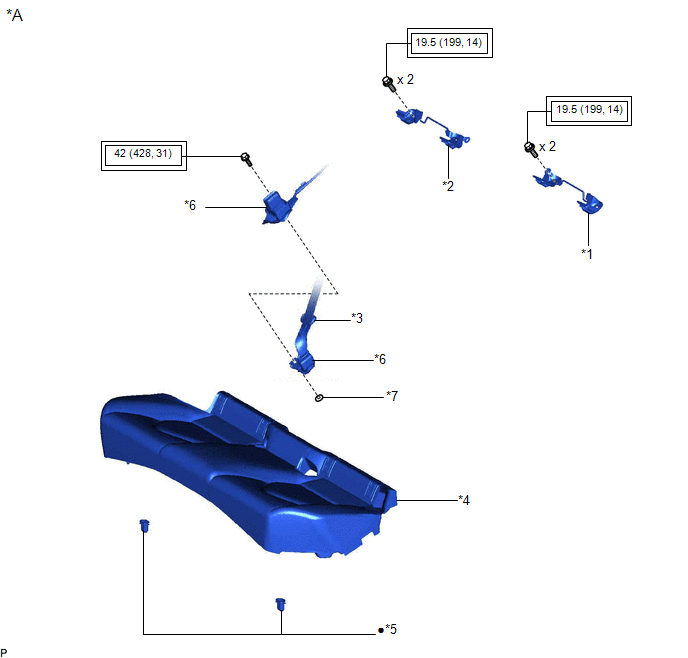

Fig 2: Child Restraint Seat Anchor Bracket Replacement Components With Torque Specifications [06/2017 - 09/2019] (2 Of 2)
| Callout | Description | Callout | Description |
| *A | For Fold Down Seat Type | *B | For TMC Made |
| *C | For TMMK Made | - | - |
| *1 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH | *2 | CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH |
| *3 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *4 | REAR SEAT CUSHION ASSEMBLY |
| *5 | REAR SEAT CUSHION LOCK HOOK | *6 | REAR SEAT INNER BELT ASSEMBLY RH |
| *7 | WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
